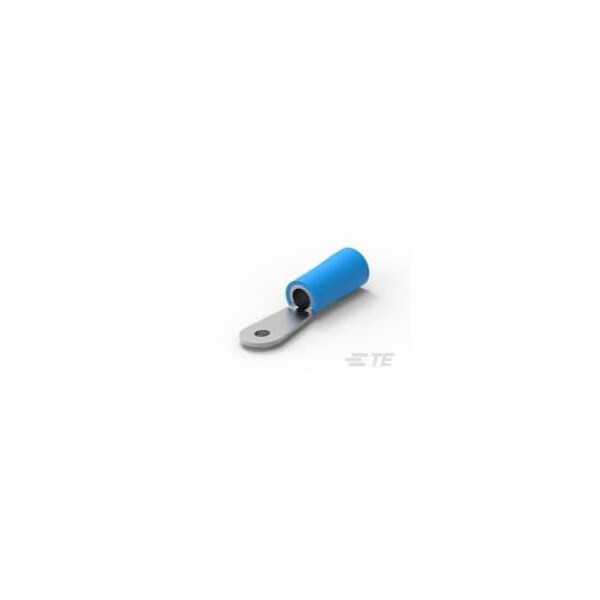

Ring Terminal, #10 Stud Size, 6 AWG, 600 V, PVC Insulated, Blue
- Mfr # 52042-4
- Zoro # G900927381
product price:Â
$
1.79
/ea
Sold in multiples of 50 for
$89.50
Key Features
Insulation Color
Blue
Insulation Type
PVC
Maximum Voltage
600 V
Maximum Operating Temperature
105 Degrees C
Barrel Inside Dia.
0.436 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 52042-4
- Zoro #
- G900927381
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 6 AWG
- Stud Size
- #10
- Barrel Inside Dia.
- 0.436 in
- Overall Length
- 1.844 in
- Minimum Wire Size
- 6 AWG
Details
- Item
- Ring Terminal
- Insulation Color
- Blue
- Insulation Type
- PVC
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 105 Degrees C
- Features
- Wire Insulation Support
- Seam
- Standard, Closed Barrel
- Wire Type
- Stranded, Regular Wire
- Insulation Dia
- 0.436 in
- Contact Plating Material
- Copper, Tin
- Terminal Orientation
- Straight
- Terminal Shape
- Standard Ring Tongue
- Standards
- UL & CSA Listed
- Minimum Operating Temperature
- 0 Degrees C
- Contact Material
- Copper
- Insulation Coverage
- Partial Coverage
- Termination Style
- Crimp
