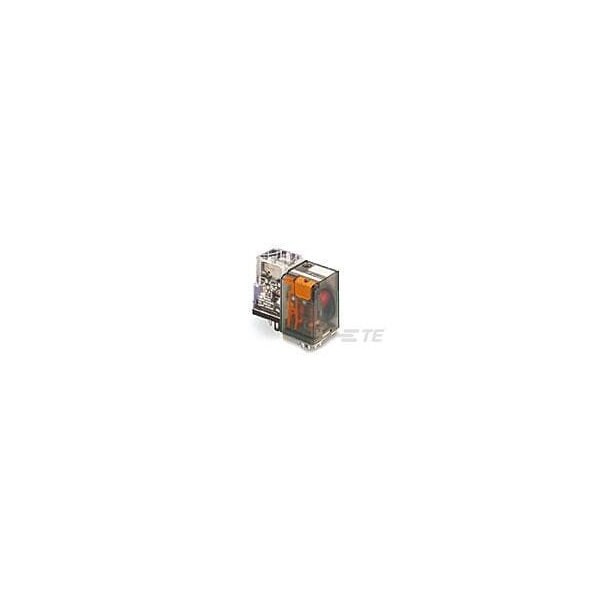

Te Connectivity Socket, Power Relay, 10 A, Plug-in 6-1393090-5 - main

Socket, Power Relay, 10 A, Plug-in

  • Mfr # 6-1393090-5

  • Zoro # G201018450

product price:  $12.39
/ea
Sold in multiples of 10 for $123.90

Key Features

Mounting Style
Socket
Electrical Connection
Plug-in
Coil Voltage
48V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6-1393090-5
Zoro #
G201018450
UPC #
-
Country of Origin
Romania

Dimensions

Product Length
1.402 in
Product Height
2.244 in
Width Class (Mechanical)
30 to 40 mm
Product Width
1.398 in
Length Class (Mechanical)
35 to 40 mm

Details

Item
Power Relay
Mounting Style
Socket
Electrical Connection
Plug-in
Coil Voltage
48V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 240V AC
Contact Material
AgNi90/10
Coil Power Rating AC
1.97 VA, 2.28 VA
Power Relay Type
Industrial Panel Plug-In
Insulation Initial Dielectric Between Contacts & Coil
2500 Vrms
Contact Limiting Continuous Current
10A
Contact Limiting Short-Time Current
10A
Actuating System
AC
Insulation Creepage Class
3 to 5.5 mm
Contact Arrangement
2 Form C (CO)
Environmental Category of Protection
RTI
Coil Special Features
UL Coil Insulation Class B
Contact Number of Poles
2
Contact Current Class
16 A, 5 to 10 A
Contact Current Rating (Max)
10A
Coil Magnetic System
Monostable, AC
Insulation Clearance Class
2.5 to 4 mm
Environmental Ambient Temperature Class
0 to 50°C
Contact Voltage Rating
240 VAC
Contact Limiting Breaking Current
10A
Coil Power Rating Class
2 to 3 VA
Insulation Initial Dielectric Between Open Contacts
1500 Vrms
Insulation Clearance Between Contact & Coil
.11 in
Contact Switching Load (Min)
10mA @ 12V
Contact Switching Voltage (Max)
400 VAC
Contact Limiting Making Current
20 A
Insulation Initial Dielectric Between Adjacent Contacts
2500 Vrms
Operating Temperature Range
-40 to 50°C
Environmental Ambient Temperature (Max)
50°C
Coil Resistance
345 Ω
Insulation Creepage Between Contact & Coil
.157 in
Insulation Initial Dielectric Between Coil & Contact Class
1500 to 2500 V
Contact Form
2 Form C (2 CO)
Number of Pins
8
