Shop TE CONNECTIVITY

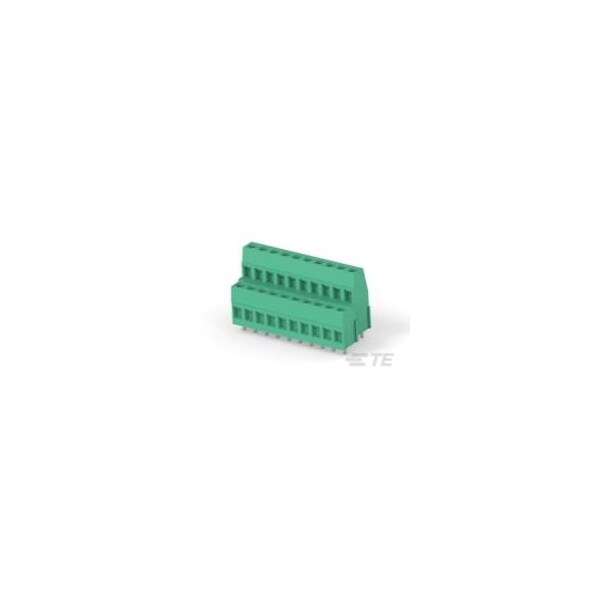

TERMI-BLOK PCB MOUNT 1&2 10POS

  • Mfr # 1-282888-1

  • Zoro # G900929910

product price:
$
14.75
/ea
Sold in multiples of 500 for $7,375.00

Key Features

Voltage
300 VAC
Housing Material
PA 6.6
Wire Entry Angle
Side
Number of Positions
10
Screw Size
M3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-282888-1
Zoro #
G900929910
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.15 in

Details

Voltage
300 VAC
Housing Material
PA 6.6
Wire Entry Angle
Side
Number of Positions
10
Contact Mating Area Plating Material
Tin
Connector Mounting Type
Board Mount
Wire Range
30 to 12 AWG
Contact Mount
Through Hole
Stacked Levels
Level 1/Level 2
Contact Current Rating (Max)
17.5 A
Side Stackable
Yes
Contact Base Material
Brass
Marking Color
White
Screwless Terminal Block
Yes
Connector & Contact Terminates To
Printed Circuit Board
Connector Style
Header
Closed End
Without
Block Type
Stacking w/interlock
Current Rating (Max)
17.5 A
Number of Rows
2
Interlock
With
Screw Flange
Without
Connector System
Wire-to-Board
Housing Color
Green
Centerline (Pitch)
.197 in
Mounting Angle
Vertical
Operating Temperature Range
-40 to 110°C
Screw Material
Brass
Screw Plating Material
Nickel
Circuit Application
Power & Signal
