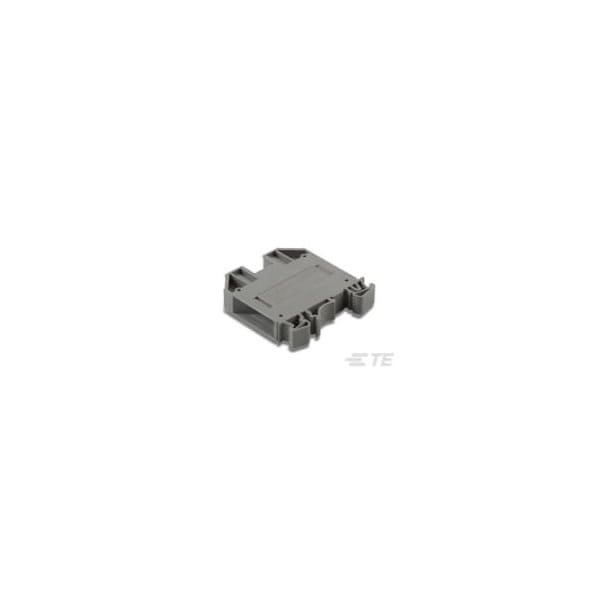

Terminal Block, 78 A, 600 V AC, 4 AWG
- Mfr # 2271685-5
- Zoro # G105797611
product price:Â
$
13.75
/ea
Sold in multiples of 15 for
$206.25
Key Features
Mounting Type
DIN
Connection Type
Quick Connect
Current
78 A
Maximum Voltage
600 V AC
For Minimum Wire Size
14 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2271685-5
- Zoro #
- G105797611
- UPC #
- -
- Country of Origin
- China
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 4 AWG
- Screw Size
- M5
Details
- Item
- Terminal Block
- Mounting Type
- DIN
- Connection Type
- Quick Connect
- Current
- 78 A
- Maximum Voltage
- 600 V AC
- Circuit Application
- Power
- Screw Plating Material
- Zinc
- Screw Base Material
- Steel
- Contact Current Rating (Max)
- 78 A
- Operating Temperature Range
- -40 to 105°C
- Contact Plating Material
- Tin
- UL Flammability Rating
- UL 94V-0
- Block Type
- Standard
- Centerline (Pitch)
- .472 in
- Contact Base Material
- Copper
- Tightening Torque
- 31 in-lbs
- Number of Positions
- 1
- Number of Circuits
- 1
- Sealable
- No
- Modular Terminal Block Product Type
- Screw Terminal Block
