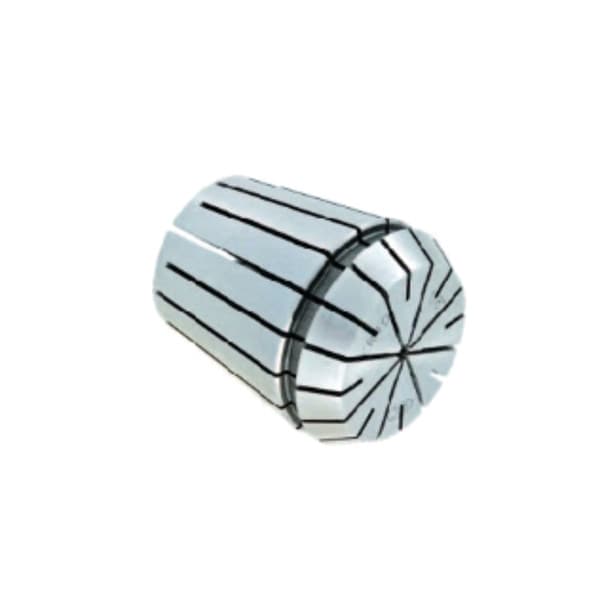

ER Collet, ER32, 7/16 in.
Mfr # 04232-7/16
Zoro # G9405943
product price:Â
$
36.15
/ea
Key Features
Collet Series
ER32
Range
0.398" to 0.437"
For Use With
AR Collet Series, BR Collet Series, DR Collet Series, ESX Collet Series, RD Collet Series
Coolant Through
Yes
Coolant Fed
Coolant Through
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 04232-7/16
- Zoro #
- G9405943
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Collet
- Collet Series
- ER32
- Range
- 0.398" to 0.437"
- For Use With
- AR Collet Series, BR Collet Series, DR Collet Series, ESX Collet Series, RD Collet Series
- Coolant Through
- Yes
- Coolant Fed
- Coolant Through
- Measurement System
- Inch
- TIR Max.
- 0.0002 in
- Compatible with Product Type
- AR, BR Series, DR, ESX, RD
- Collet Type
- Standard
- Number of Slots
- 8
- Face Shape
- Round
- Material
- High-Carbon Steel
- Compatible Collet Chuck
- AR, BR, DR, ESX, RD
- Operating Pressure - Maximum
- 2,000 psi
- Collapse Range - Minimum
- 0.398 in
- T.I.R. Tolerance
- 0.0002 in
- Bore Shape
- Round
- Collapse Range - Maximum
- 0.437 in
- Finish
- Precision Ground
- Torque - Maximum
- 100 ft-lb
- Taper Angle
- 8 Degrees
Description
Collet, ER32, Round, Overall Length 1 9/16 in
