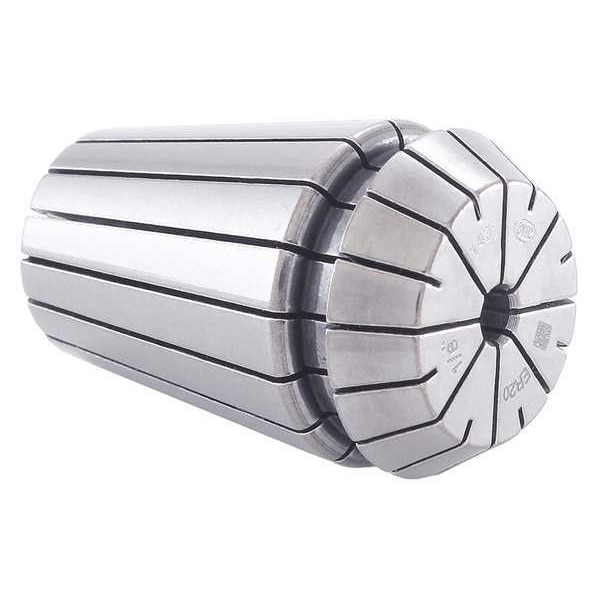

Spring Collet, ER20, 13.5mm

Name: Spring Collet, ER20, 13.5mm
Brand: Techniks
SKU: G0392029
Price: 40.89 USD
Availability: InStock

$40.89

/ea

Collet Series

ER20

Range

13.5mm to 13.1mm

For Use With

BR Collet Chuck Series, DR Collet Chuck Series, ER Collet Chuck Series, ESX Collet Chuck Series, RD Collet Chuck Series

Coolant Through

Yes

Coolant Fed

Coolant Through

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Collet
Collet Series: ER20
Range: 13.5mm to 13.1mm
For Use With: BR Collet Chuck Series, DR Collet Chuck Series, ER Collet Chuck Series, ESX Collet Chuck Series, RD Collet Chuck Series
Coolant Through: Yes
Coolant Fed: Coolant Through
Face Shape: Round
Number of Slots: 8
Measurement System: Metric
Collet Type: Standard
Compatible with Product Type: AR, BR Series, DR, ESX, RD
TIR Max.: 0.0002 in
Operating Pressure - Maximum: 2,000 psi
Torque - Maximum: 59 ft-lb
Collapse Range - Maximum: 13.5 mm
Bore Shape: Round
Collapse Range - Minimum: 13 mm
Taper Angle: 8 Degrees
Compatible Collet Chuck: AR, BR, DR, ESX, RD
T.I.R. Tolerance: 0.0002 in

Collet, ER20, Round, Overall Length 31 1/2 mm
