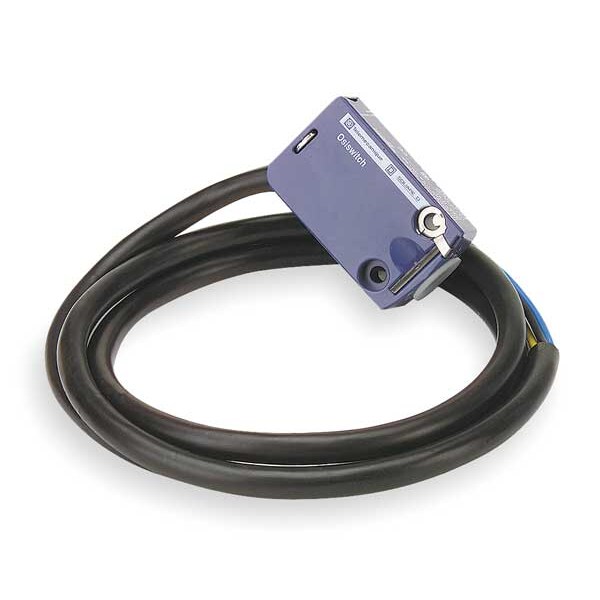

1NC/1NO Miniature Limit Switch Body Nema 4X, 6P, 12, 13

  • Mfr # ZCMD21L1

  • Zoro # G2579087

product price:  $60.15
/ea

Key Features

For Use With
XCMD Series Limit Switches
NEMA Rating
12, 13, 4X, 6P
Electrical Connection
Snap-In Base with 1m PVR Cable
Standards
IEC 60255-7, IEC 60947-5-1
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCMD21L1
Zoro #
G2579087
UPC #
785901298397
Country of Origin
Indonesia

Dimensions

Depth
16 mm
Height
50-50 mm
Cable Length
1 m
Width
30 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.97 in
Overall Width
1.18 in
Mounting Hole Diameter
0.17 in
Overall Depth
0.63 in

Details

Item
Miniature Limit Switch Body
For Use With
XCMD Series Limit Switches
NEMA Rating
12, 13, 4X, 6P
Electrical Connection
Snap-In Base with 1m PVR Cable
Standards
IEC 60255-7, IEC 60947-5-1
Contact Form
1NO/1NC
AC Contact Rating
6 A @ 300 V
Series
XCMD
Operating Temp.
-13 Degrees to 158 Degrees F
IP Rating
IP66, IP67
Material
Metal
Body Material
zamak
Electrical Durability
5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60664 || 4 kV IEC 60947-1
Body Type
fixed
Number Of Poles
2
Associated Head
ZCE24 || ZCE08 || ZCE21 || ZCE07 || ZCEF0 || ZCE02 || ZCE13 || ZCE62 || ZCE65 || ZCE64 || ZCE01 || ZCE29 || ZCE09 || ZCE06 || ZCEG1 || ZCE66 || ZCE14 || ZCE10 || ZCEF2 || ZCE63 || ZCE28 || ZCE27 || ZCE11 || ZCE67
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
limit switch body
Contacts Material
silver plated contacts
Cable Composition
5 x 0.75 mm²
Maximum Resistance Across Terminals
25 mOhm IEC 60255-7 category 3
Wire Insulation Material
PvR
Device Short Name
ZCMD
Contact Operation
snap action
Contacts Insulation Form
Zb
Product Compatibility
XCMD
Design
miniature
Minimum Actuation Speed
0.01 m/min
Positive Opening
with
Contacts Type And Composition
1 NC + 1 NO
Series Name
standard format
Short-Circuit Protection
6 A cartridge fuse gG
[Ui] Rated Insulation Voltage
300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Mounting Hole Horizontal Center to Center Distance
21 mm
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
12, 13, 4X, 6P
Number of Mounting Holes
2
Compatible with Series
XCMD
Operating Temperature - Maximum
158 Degrees F
Body Configuration
Non Plug-In
Indicating Light
No Indicating Light Included
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1

Description

Miniature Limit Switch Body, Contact Form 1NO/1NC, For Use With XCMD Series Limit Switches, AC Contact Rating 6 A @ 300 V, NEMA Rating 12, 13, 4X, 6P, Electrical Connection Snap-In Base with 1m PVR Cable, IP Rating IP66, IP67, Operating Temp. -13 Degrees to 158 Degrees F, Standards IEC 60255-7, IEC 60947-5-1
