  15. 1NC/1NO Safety Interlock Switch IP 66, 67

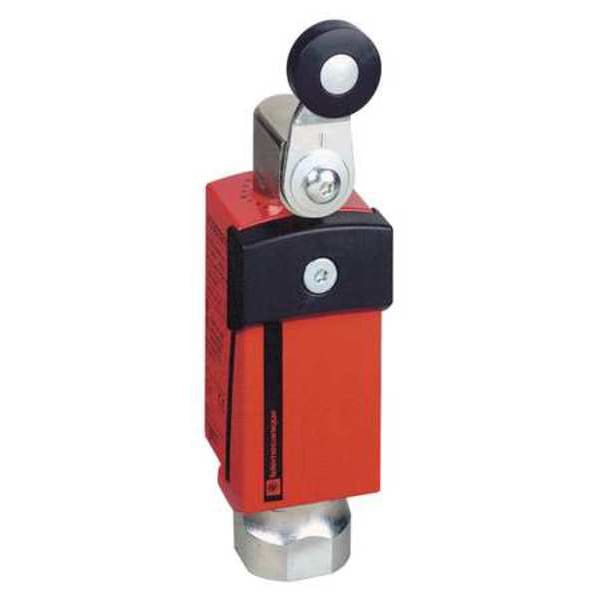

Telemecanique Sensors 1NC/1NO Safety Interlock Switch IP 66, 67 XCSD3718N12 - main

1NC/1NO Safety Interlock Switch IP 66, 67

  • Mfr # XCSD3718N12

  • Zoro # G3605655

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Style
Plastic Roller Lever
Series
XCSD
Actuator Length
0.39 in
AC Contact Rating
1.5 A @ 300 V
DC Contact Rating
0.1 A @ 300 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCSD3718N12
Zoro #
G3605655
UPC #
785901578840
Country of Origin
France

Dimensions

Actuator Length
0.39 in
Height
4.79 in
Width
1.18 in
Depth
1.36 in
Conduit Size
1/2 in NPT
Overall Depth
1.38 in
Overall Width
1.34 in
Manufacturer Warranty Length
18 mo
Overall Height
4.8 in

Details

Item
Safety Interlock Switch
Style
Plastic Roller Lever
Series
XCSD
AC Contact Rating
1.5 A @ 300 V
DC Contact Rating
0.1 A @ 300 V
Contact Form
1NC/1NC/1NO
Connection Type
1/2 in NPT Conduit
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508
Head Material
Zamak
Description/Special Features
0.88 in-lb Minimum Torque for Tripping, Plastic Enclosure, Poditive Opening Contacts
Movement
Horizontal
Body Material
Zamak
Operating Force
2.21 in-lb
Electrical Connection
1/2 in NPT Conduit
Features
Positive Opening Contacts
Material
metal
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Head Type
rotary head
Type Of Operator
thermoplastic roller lever
Protective Treatment
TC
Maximum Resistance Across Terminals
25 MOhm IEC 60255-7 category 3
Electrical Shock Protection Class
class I NF C 20-030 || class I EN/IEC 61140
Ambient Air Temperature For Operation
-25-70°C
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 || 4 kV IEC 60664
Component Name
XCSD
Product Certifications
UL || CSA
Positive Opening
with NC contact
Ambient Air Temperature For Storage
-40-70°C
Short-Circuit Protection
6 A cartridge fuse gG (gl)
Switch Actuation
by 30° cam
Contacts Type And Composition
1 NC + 1 NC + 1 NO
[Ithe] Conventional Enclosed Thermal Current
6A
Product Or Component Type
safety limit switch
Ip Degree Of Protection
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Minimum Torque For Tripping
0.1 N.m
Cable Entry
1 entry tapped 1/2" NPT
Contact Operation
slow-break, break before make
[Ui] Rated Insulation Voltage
300 VUL 508 || 400 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14
Repeat Accuracy
0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
Ik Degree Of Protection
IK06 EN 50102
Clamping Connection Capacity
1 x 0.34...2 x 0.75 mm²
Enclosure Material
Plastic
Maximum Actuation Speed
1.5 m/s
Number Of Poles
3
Contact Code Designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Protection Technology
plastic protective cover, secured by 5-lobe socket head safety screw
Positive Opening Minimum Torque
0.25 N.m
Design
compact
Actuator Material
Metal
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
10,000,000
Operating Temperature - Maximum
158 Degrees F
Operating Torque
2.1 in-lb
Circuitry Action
Slow Action

Description

Safety Interlock Switch, Plastic Roller Lever, Contact Form 1NC/1NC/1NO, Actuator Length 0.39 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 1.5 A @ 300 V, Series XCSD, DC Contact Rating 0.1 A @ 300 V, Height 4.79 in, Width 1.18 in, Depth 1.36 in, IP Rating IP66, IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Conduit Size 1/2 in NPT, Body Material Zamak, Head Material Zamak
