  15. 2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66

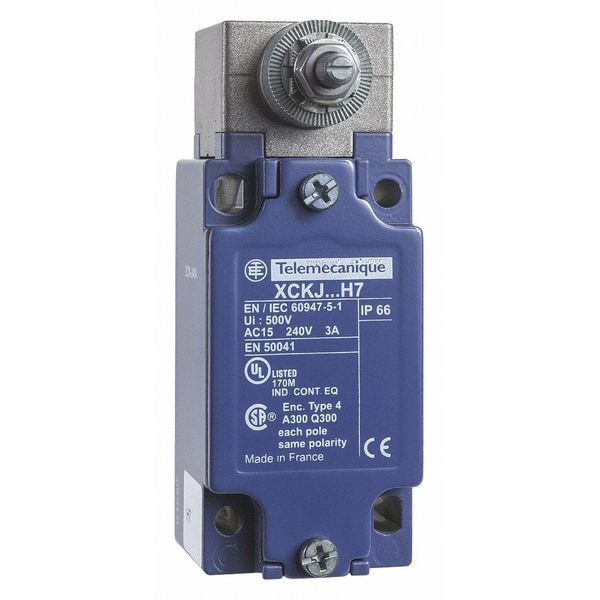

Telemecanique Sensors 2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66 ZCKJ404H7 - main

2NC/2NO Heavy Duty Limit Switch Rotary Head IP 66

  • Mfr # ZCKJ404H7

  • Zoro # G2130712

product price: $191.99
/ea
Free Shipping & Returns

Key Features

Body Style (Limit Switch)
Standard
Body Style - Limit Switch
Standard
Stem Thread - Limit Switch
No Stem
Body Width - Limit Switch
1.57 in
Actuator Style (Limit Switch)
Rotary, No Lever
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKJ404H7
Zoro #
G2130712
UPC #
785901466680
Country of Origin
France

Dimensions

Body Width - Limit Switch
1.57 in
Depth
1.73"
Body Depth - Limit Switch
2.36 in
Height
4.29"
Body Height - Limit Switch
4.01 in
Width
1.67"
Overall Width
1.69 in
Mounting Hole Diameter
0.21 in
Body Height
4.01 in
Body Depth
2.36 in
Body Width
1.57 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.36 in
Overall Height
4.29 in

Details

Item
Limit Switch
Body Style (Limit Switch)
Standard
Body Style - Limit Switch
Standard
Stem Thread - Limit Switch
No Stem
Actuator Style (Limit Switch)
Rotary, No Lever
Electrical Connection
Screw Clamp Terminals
Voltage Rating
600VAC/VDC
Amps
10
Basic Actuator Style - Limit Switch
Rotary
Limit Switch Style
Heavy Duty Limit Switch
Contact Form - Limit Switch
2NC/2NO
Mounting - Limit Switch
Surface
DC Contact Rating
10 A @ 600 V
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location (Limit Switch)
Side
Mounting Hole - Limit Switch
(4) 0.21 in dia
Contact Form
DPDT
Body Material
Metal
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Wiring Entry
1/2 in NPT
Standards
EN 50041, EN 50047, IEC
Travel
Total Travel 90 Degrees
Operating Force
2.21 in-lb
Series
ZCKJ
IP Rating
IP66
DC Contact Rating - Limit Switch
10A @ 600V
Contact Form- Switches
2NC/2NO
Actuator Style - Limit Switch
No Lever, Rotary
NEMA Rating
1, 12, 13, 2, 4
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating - Limit Switch
10A @ 600V
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style
Rotary Lever
Movement
CCW, CW
Actuator Location - Limit Switch
Side
AC Contact Rating
10 A @ 600 V
Actuator Location
Side
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Type And Composition
2 C/O
Series Name
standard format
Number Of Poles
2
Contacts Material
silver plated contacts
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66
Device Short Name
ZCKJ
Ambient Air Temperature For Operation
-40-70°C low temperature
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Product Or Component Type
limit switch body with spring return rotary head
Contact Operation
snap action
Minimum Actuation Speed
0.01 m/min
Positive Opening
without
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Switch Actuation
from left and right
Body Type
fixed
[Ithe] Conventional Enclosed Thermal Current
10 A
Short-Circuit Protection
10 A cartridge fuse gG
Terminals Description Iso N°1
(23-24)NO || (21-22)NC || (11-12)NC || (13-14)NO
Number Of Steps
2 3 positions
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Environmental Characteristic
low temperature
Product Compatibility
XCKJ
Ik Degree Of Protection
IK07
Cable Entry
1 entry tapped for 1/2" NPT conduit
Terminals Description Iso N°1
(23-24)NO || (21-22)NC || (11-12)NC || (13-14)NO
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 12, 13, 2, 4
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm
Total Travel
90 Degrees
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
4
Operating Torque - Maximum
2.21 in-lb
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
30 mm

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
