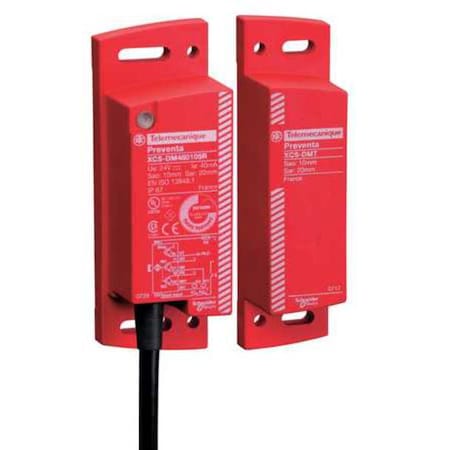

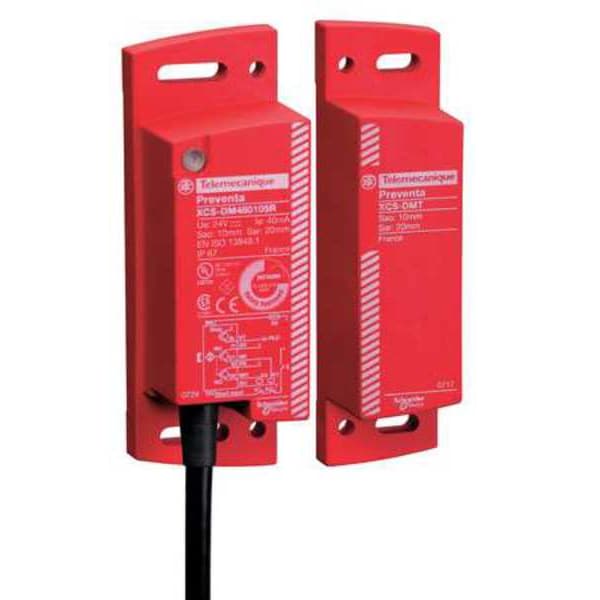

2NO Magnetically Actuated Safety Interlock Switch (Discontinued)
- Mfr # XCSDM379110
- Zoro # G4727317
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
XCSDM379110
Zoro #
G4727317
UPC #
03389118307292
Country of Origin
France
Dimensions
Switch Width
1.34 in
Cable Length
32 ft
Switch Depth
1.27 in
Actuator Height
3.94 in
Actuator Depth
1.27 in
Actuator Width
1.34 in
Switch Height
3.94 in
Overall Height
3.94 in
Overall Depth
1.27 in
Overall Width
1.34 in
Description
Magnetically Actuated Safety Interlock Switch, Series XCSDM, Switch Width 1.34 in, Switch Height 3.94 in, Switch Depth 1.27 in, DC Contact Rating 1.5 A @ 24 V, Operating Temp. Range -13 Degrees to 158 Degrees F, Termination Type M12 Connector, Cable Length 32 ft, IP Rating IP66, IP67, IP69K, Actuator Width 1.34 in, Actuator Height 3.94 in, Actuator Depth 1.27 in, On Sensing Distance 0.39 in, Off Sensing Distance 0.79 in, Body Material Plastic, Standards CSA, TUV, UL Listed
Restrictions
Hazardous material
