  6. Alternator Lqd Lvl Swch, Close On Rise, SS

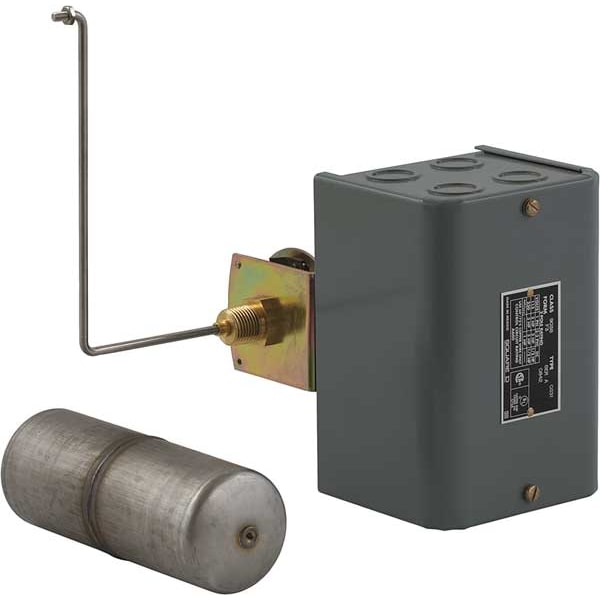

Telemecanique Sensors Alternator Lqd Lvl Swch, Close On Rise, SS 9038CG31F3 - main

Alternator Lqd Lvl Swch, Close On Rise, SS

  • Mfr # 9038CG31F3

  • Zoro # G1041932

product price:  $518.99
/ea
Free Shipping & Returns

Key Features

Switch Function
Close On Rise
Mounting
Side
Float Travel
6 1/2 in
NEMA Rating
1
Tank Connection Size
2-1/2 in MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9038CG31F3
Zoro #
G1041932
UPC #
785901177319
Country of Origin
Mexico

Dimensions

Tank Connection Size
2-1/2 in MNPT
Overall Length
17.81 in
Float Dia.
2.5 in
Conduit Size
8 1/2 in, 8 3/4 in
Width
6.84 in
Height
5.94 in
Stem Length
4 in
Float Length
7 in
Stem Thread Size
2 1/2 in MNPT
Overall Width
6.84 in
Float Diameter
2.5 in
Overall Height
5.94 in
Manufacturer Warranty Length
18 mo

Details

Item
Alternator Closed Liquid Level Switch
Switch Function
Close On Rise
Mounting
Side
Float Travel
6 1/2 in
NEMA Rating
1
Max. Pressure
50 PSI
Operating Temp. Range
-22 Degrees to 220 Degrees F
HP @ 3 Phase - 240V
5 hp
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
HP @ 1 Phase - 120V
2 hp
Electrical Connections
Screw Clamp
Body Material
Steel
Max. Current
600 A
Includes
Rod and Float - Omit Bushing
Float Rod Angle
90 Degrees
Contact Form
DPST-4NC
Float Material
Stainless Steel
Float Position
Right
Max. Voltage
475 V
HP @ 1 Phase - 240V
3 hp
Stem Material
Stainless Steel
Enclosure Material
painted cold-rolled steel
Product Type
Alternator Closed Liquid Level Switch
Proof Pressure
50 psi
Series
9038C
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Operating Temperature - Maximum
220 Degrees F
Mounting Style
Closed Tank Vertical
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Media Specific Gravity
0.85
Voltage Rating - Maximum
575 V
NEMA Enclosure Rating
1
Electrical Connection
Screw Clamp
Nema Degree Of Protection
NEMA 1 UL 50
Electrical Durability
100 cycles 60 cyc/mn
Local Signalling
with external pointer
Float Movement
6.5...13 in adjustable
Short-Circuit Protection
20 A cartridge fuse gG
Terminals Description Iso N°1
line-load-load-line
Controlled Fluid
fresh water specific gravity of 0.85 in or higher 0-220°F || sea water specific gravity of 0.85 in or higher 0-220°F || hydraulic oil specific gravity of 0.85 in or higher 0-220°F || corrosive fluid specific gravity of 0.85 in or higher 0-220°F
Terminal Block Type
8 terminals
Operating Position
vertical position only
Contact Operation
contacts close on liquid rise
Product Certifications
UL listed file E12158 || CSA file LR25490
Device Short Name
9038C
Cable Entry Number
8 knock-outs for 1/2" or 3/4"conduit UL 508
Product Or Component Type
mechanical alternator
Device Mounting
screw-in bushing
[Ui] Rated Insulation Voltage
575 V UL 508
Contacts Type And Composition
4 NC, snap action, DPST-DB, Form YY
Product Destination
for closed tank
Product Specific Application
mechanically alternating the operation of two pumps or motors
Ambient Air Temperature For Operation
-22-220°F
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Kit Composition
float switch || float || rod
Maximum Operating Rate
60 cyc/mn
Materials In Contact With Fluid
stainlesss steel 304 || nitrile (Buna-N) or equivalent rubber || stainless steel 316 || cast iron || yellow brass
Device Application
closed tank with bushing
Factory Modification
omit 2.5 inch bushing
Mechanical Durability
300 cycles
Ambient Air Temperature For Storage
-22-220°F
Electrical Circuit Type
power circuit

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 6 1/2 in, NEMA Rating 1, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 17.81 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4 in, Height 5.94 in, Width 6.84 in, Contact Form DPST-4NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp
