  11. Cordset, 6.56 ft., Black, 250VAC/300VDC

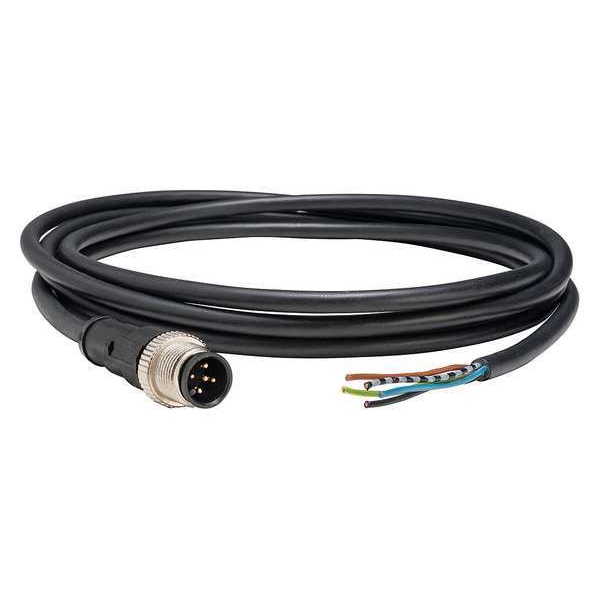

Telemecanique Sensors Cordset, 6.56 ft., Black, 250VAC/300VDC XZCP1564L2 - main

Cordset, 6.56 ft., Black, 250VAC/300VDC

  • Mfr # XZCP1564L2

  • Zoro # G7232531

product price: $26.23
/ea

Key Features

End 1 Number of Pins
5
Cable Length
2 m
Wire Size
18 AWG
IP Rating
IP65, IP67, IP69K
Standards
CSA Certified, IEC, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCP1564L2
Zoro #
G7232531
UPC #
785901810162
Country of Origin
Czechia

Dimensions

Cable Length
2 m
Wire Size
18 AWG
Cable Outer Diameter
5.9 mm

Details

Item
Cordset
End 1 Number of Pins
5
IP Rating
IP65, IP67, IP69K
Standards
CSA Certified, IEC, UL Listed
End 1 Connection Type
M12
Number of Conductors
5
Max. Voltage
60VAC/75VDC
End 2 Connection Type
Bare Wire
End 2 Gender and Plug End
Bare Wire
Temp. Range
-40 Degrees to 80 Degrees C
End 1 Thread
M12
Features
Good Resistance to Severe Mechanical Stress; Friction; Abrasion; Torsion; Hot and Cold Oils; Greases and Lubricants; Halogen Free; Mercury Free
Max. Amps
4 A
End 1 Gender and Plug End
Male Straight
End 1 Keyway
Single
End 1 Number of Keyways
1
Number of Wires
5
End 1 Gender
Male
Cable Jacket Material
PUR
Cable Jacket Color
Black
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Straight
Maximum Operating Temperature
176 Degrees F
Accessory / Separate Part Type
pre-wired connectors
Product Certifications
cULus
Accessory / Separate Part Category
cabling accessory
Collar Material
metal
Cable Connector Fixing
screw-on
Ambient Air Temperature For Operation
-40-80°C static || -5-80°C flexing
Line Rated Current
4A
Cable Composition
4 x 0.34 mm² || 1 x 0.5 mm²
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Minimum Insulating Resistance
1 GΩ
Status Led
without
Ambient Air Temperature For Storage
-40-80°C
Electrical Connection
straight male connector M12, 5 pins (included earth pin)
Series Name
general purpose
Contact Resistance
5000µOhm
Product Type
Single Ended

Description

Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
