Shop TELEMECANIQUE SENSORS

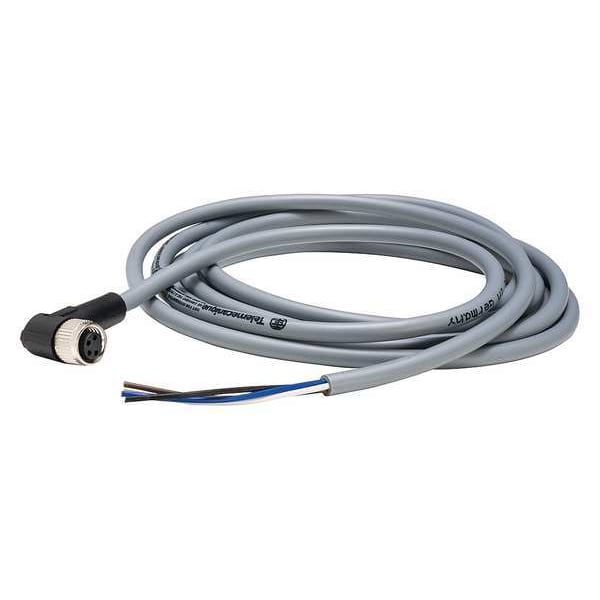

Cordset, 6.56 ft., Gray, 250VAC/300VDC

  • Mfr # XZCPV1041L2
  • Zoro # G9726062
product price:
$
38.49
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
4
Cable Length
6.56 ft
Cable Jacket Material
PVC
Wire Size
18 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XZCPV1041L2
Zoro #
G9726062
UPC #
785901431602
Country of Origin
Czechia
Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
4
Cable Jacket Material
PVC
IP Rating
IP65, IP67
Max. Amps
3 A
Maximum Operating Temperature
176 Degrees F
Temp. Range
-25 Degrees to 80 Degrees C
Standards
CSA Certified, IEC, UL Listed
End 1 Gender and Plug End
Female Right Angle
End 1 Keyway
Single
Max. Voltage
250 V AC, 300 V DC
End 2 Gender and Plug End
Bare Wire
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
Number of Conductors
4
End 1 Thread
M8
End 2 Connection Type
Bare Wire
End 1 Connection Type
M8
End 1 Number of Keyways
1
End 1 Gender
Female
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Right Angle
Number of Wires
4
Cable Jacket Color
Gray
Ambient Air Temperature For Storage
-25-80°C
Accessory / Separate Part Type
pre-wired connectors
Line Rated Current
3A
Minimum Insulating Resistance
1 GΩ
Product Certifications
cULus
Collar Material
metal
Cable Composition
4 x 0.25 mm²
Series Name
general purpose
[Ue] Rated Operational Voltage
60 V AC || 75 V DC
Electrical Connection
elbowed female connector M8, 4 pins
Cable Connector Fixing
screw-on
Status Led
without
Ambient Air Temperature For Operation
-25-80°C static
Contact Resistance
5000µOhm
Accessory / Separate Part Category
cabling accessory

Dimensions

Cable Length
6.56 ft
Wire Size
18 AWG
Cable Outer Diameter
4.6 mm
Fits Chest Size
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping

Description

Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed

Restrictions

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
