  11. Cylindrical, Inductive Proximity Sensor, 13 mm Dia., PPS, 2 m, Bare Wire, 2 Wires, Shielded

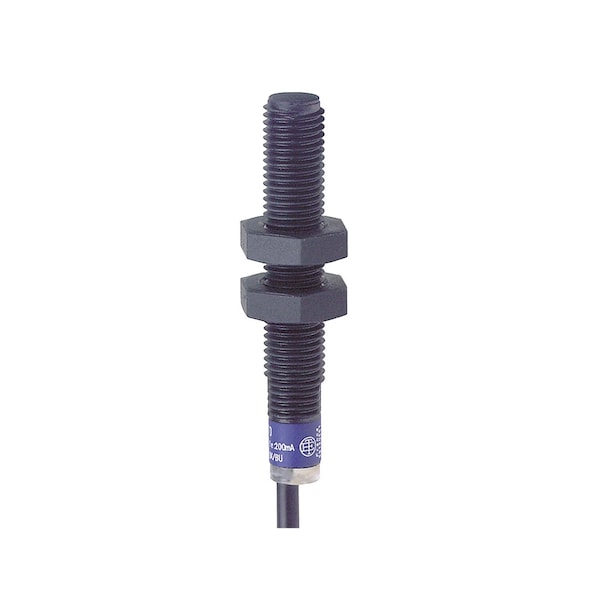

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 13 mm Dia., PPS, 2 m, Bare Wire, 2 Wires, Shielded XS4P08MA230 - main

Cylindrical, Inductive Proximity Sensor, 13 mm Dia., PPS, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS4P08MA230

  • Zoro # G0564168

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
50 mm
Depth
8 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P08MA230
Zoro #
G0564168
UPC #
785901912804
Country of Origin
France

Dimensions

Length
50 mm
Depth
8 mm
Overall Height
50 mm
Overall Diameter
13 mm
Cable Length
2 m

Details

Item
Inductive Cylindrical Proximity Sensor
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 25 Hz AC; Less than Or Equal to 3000 Hz DC
Standards
CCC, CE, CSA, Ecolab, UL Listed
IP Rating
IP67
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
Bare Wire
Application
general purpose
Maximum Delay Recovery
0.2 ms
Differential Travel
1...15% of Sr
Series
XS4
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
0.2 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
5...100 mA AC/DC
Storage Temp. Range
-40-85 °C
Body Type
fixed
Maximum Delay First Up
40 ms
Supply Voltage Limits
20-264 V AC/DC
Maximum Voltage Drop
<5.5 V closed)
Switching Frequency
25 Hz (AC), 3,000 Hz (DC)
Output Circuit Number of Wires
2
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
3 mm
Body Material
PPS
AC Voltage Rating
24-240V AC
Output Circuit Contact Form
NO
Electrical Installation Type
Prewired Cable
Style
Cylindrical, Inductive
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
24-240V DC
Sensing Face Shielding
Shielded
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
AC/DC-Type

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, Standards CCC, CE, CSA, Ecolab, UL Listed
