  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

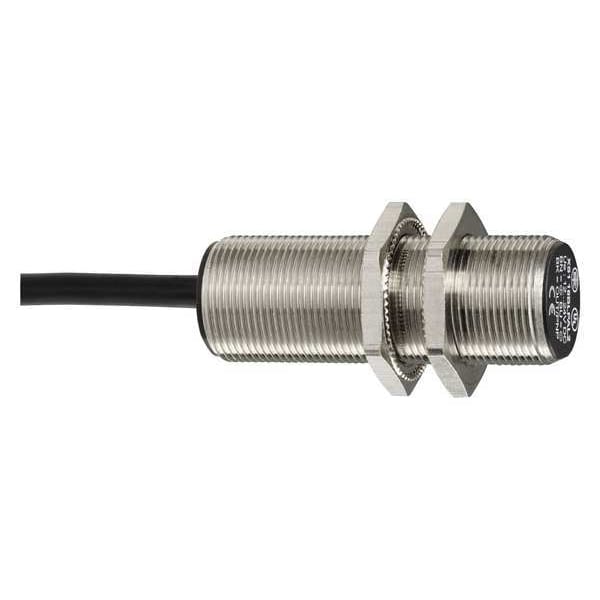

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded XS518B1MAL2 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS518B1MAL2

  • Zoro # G6065385

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
62 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS518B1MAL2
Zoro #
G6065385
UPC #
785901942351
Country of Origin
France

Dimensions

Length
62 mm
Overall Height
62 mm
Cable Length
2 m
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
1,000 Hz
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Max. Current Load
200mA
Standards
CE, CSA, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP68, IP69K
Electrical Connection
Bare Wire
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Voltage Drop
<5.5 V closed)
Series
XS5
Maximum Delay Response
0.5 ms
Application
general purpose
Body Type
fixed
Switching Capacity
5...200 mA DC || 5...300 mA AC
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
20-264 V AC/DC
Maximum Delay First Up
25 ms
Maximum Delay Recovery
0.5 ms
Sensing Face Shielding
Shielded
Output Circuit Type
AC/DC-Type
Style
Cylindrical, Inductive
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
24-240V AC
Body Finish
Nickel Plated
Sensing Distance - Maximum
5 mm
Output Circuit Number of Wires
2
Switching Frequency
1,000 Hz (DC), 25 Hz (AC)
DC Voltage Rating
24-240V DC
Output Circuit Contact Form
NO
Load Current - Maximum
300 mA
Body Material
Brass
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
