  6. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

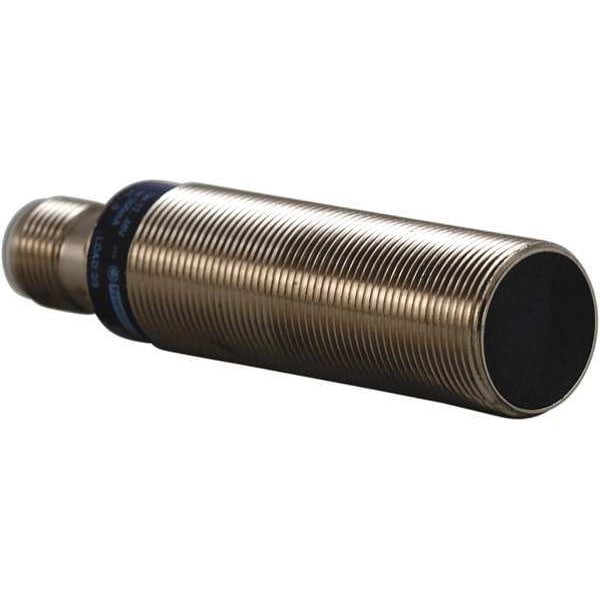

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded XS618B1PBM12 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS618B1PBM12

  • Zoro # G1406666

product price:  $114.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
74 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS618B1PBM12
Zoro #
G1406666
UPC #
785901872238
Country of Origin
Multiple

Dimensions

Length
74 mm
Overall Diameter
18 mm
Overall Height
74 mm

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
Standards
CE, CSA, E2, RoHS, UL Listed
IP Rating
IP67, IP69K
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Extended Range
Max. Current Load
200mA
Electrical Connection
M12
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Maximum Delay Recovery
0.7 ms
Series
XS6
Supply Voltage Limits
10-58 V DC
Maximum Delay Response
0.3 ms
Application
mobile equipment; general purpose
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Style
Cylindrical, Inductive
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Nickel Plated
Sensing Face Shielding
Shielded
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
PNP
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4
DC Voltage Rating
12-48V DC
Output Circuit Number of Wires
3
Electrical Installation Type
Direct Connector
Body Material
Brass
Sensing Distance - Maximum
8 mm
Features
Extended Range
Output Circuit Contact Form
NC
Switching Frequency
1,000 Hz
Load Current - Maximum
200 mA
AC Voltage Rating
Not Rated
NEMA Enclosure Rating
4X
Sensing Distance - Minimum
4 mm

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 74 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
