Shop TELEMECANIQUE SENSORS

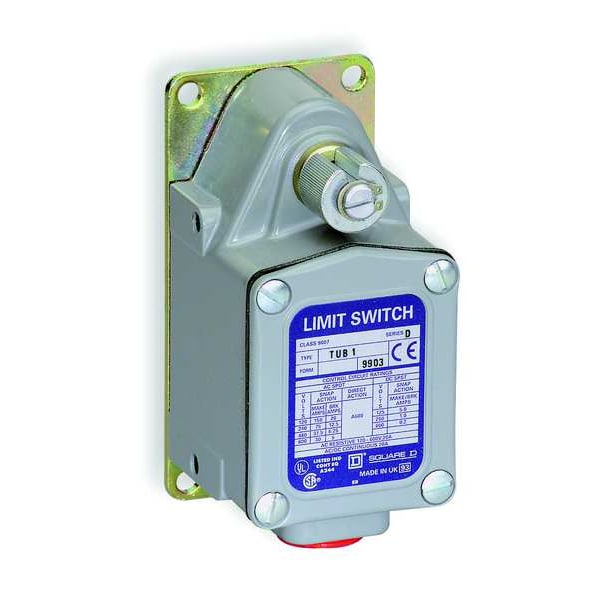

Severe Duty Limit Switch, No Lever, Rotary, SPDT, 20A at 600V AC, Actuator Location: Side

  • Mfr # 9007TUB1

  • Zoro # G3349053

product price:  $378.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
20A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9007TUB1
Zoro #
G3349053
UPC #
785901751830
Country of Origin
Mexico

Dimensions

Depth
2.44"
Body Width - Limit Switch
2.25 in
Width
2.25"
Body Depth - Limit Switch
2.44 in
Height
4.66"
Body Height - Limit Switch
4.66 in
Body Width
2.25 in
Body Depth
2.44 in
Mounting Hole Diameter
0.25 in
Overall Height
4.66 in
Body Height
4.66 in
Overall Depth
2.44 in
Overall Width
2.25 in
Manufacturer Warranty Length
18 mo

Details

Item
Severe Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
20A at 600V
DC Contact Rating - Limit Switch
20A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Series
9007T
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Voltage Rating
600VAC/DC
Operating Temp. Range
-10 Degrees to 185 Degrees F
NEMA Rating
1, 12, 13, 2, 4
Contact Form - Limit Switch
SPDT
Actuator Style (Limit Switch)
Rotary, No Lever
Stem Thread - Limit Switch
No Stem
Body Style (Limit Switch)
Standard
Number of Poles
1
Basic Actuator Style (Limit Switch)
Rotary
Operating Force
12.0 in-lb
Limit Switch Style
Severe Duty Limit Switch
Actuator Location
Side
Amps
20
Mounting Hole - Limit Switch
(4) 0.26 in dia
Actuator Style
Rotary Head, No Lever
Body Material
Zinc
Boot Sealed Actuator - Limit Switch
No
Contact Form
SPDT
Standards
NEMA
Electrical Connection
Screw Terminal
Travel
Total Travel 88 Degrees
DC Contact Rating
0.2 A @ 600 V, 1 A @ 250 V, 5 A @ 120 V
Mounting Hole Spacing - Limit Switch
4.22 in x 1.81 in
Movement
CW
Wiring Entry
1/2 in NPT
AC Contact Rating
12.5 A @ 240 V, 20 A @ 120 V, 5 A @ 600 V, 6.25 A @ 480 V
IP Rating
IP67
Boot Sealed Actuator (Limit Switch)
No
Actuator Location (Limit Switch)
Side
Contact Material
silver flashed copper
Special Features
lateral approach
Head Type
rotary head
Min. Actuation Velocity Horizontal
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Short Circuit Protection
20 A Bussmann class CC KTK-R-21 fuse non-time delay
Weight
2.5 lb(US)
Shock Resistance
30 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Actuation Type
CW || from left
Vibration Resistance
10 gn 10-55 Hz)IEC 60068-2-6
Number of Mounting Holes
4
Directional Movement
CW
Pretravel
14 Degrees
Action
Maintained
NEMA Enclosure Rating
1, 12, 13, 2, 4
Includes Actuator
No Actuator Included
Mounting Hole Horizontal Center to Center Distance
46 mm
Boot Sealed Actuator
No Boot Included
Mounting Hole Vertical Center to Center Distance
107 mm
Operating Torque - Maximum
12 in-lb
Operating Temperature - Maximum
185 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Total Travel
88 Degrees
Operating Temperature - Minimum
-10 Degrees F
Type Of Operator
spring return without operating lever

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 20A @ 600V, DC Contact Rating - Limit Switch 20A @ 600V, Contact Form- Switches SPDT, Body Height - Limit Switch 4.66 in, Body Width - Limit Switch 2.25 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
