Shop TELEMECANIQUE SENSORS

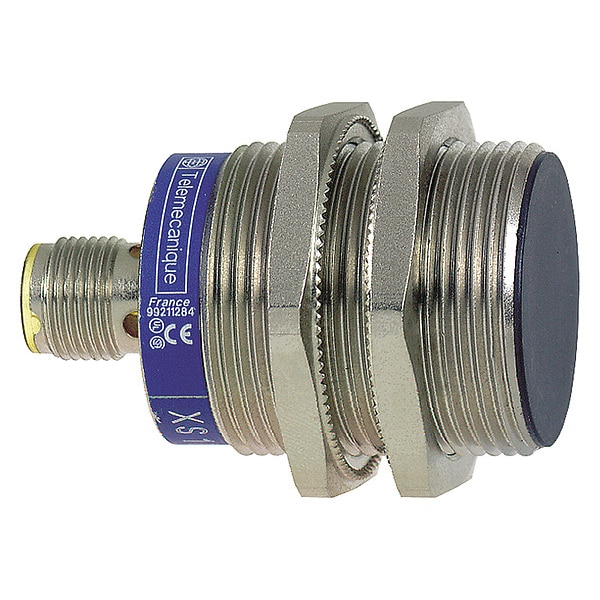

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS1N30PA349D
  • Zoro # G0478095
product price:
$
148.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
0 to 16 mm
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS1N30PA349D
Zoro #
G0478095
UPC #
785901911470
Country of Origin
France

Dimensions

Overall Diameter
30 mm
Length
55 mm
Depth
30 mm
Overall Height
55 mm
Fits Chest Size
Overload Protection, Reverse Polarity Protection, Short Circuit Protection

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
0 to 16 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
20 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, UL Listed
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz
IP Rating
IP67, IP69K
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 Degrees to 50 Degrees C
Maximum Voltage Drop
<2 V closed)
Maximum Delay Response
0.6 ms
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS1
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Maximum Delay First Up
5 ms
Application
general purpose
Maximum Delay Recovery
1.4 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Supply Voltage Limits
10-36 V DC
Switching Frequency
500 Hz
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Sensing Method
Inductive
Body Finish
Nickel Plated
Number of Pins
4
Operating Temperature - Maximum
122 Degrees F
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Container Type
Cylindrical

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, IP69K, Standards CE, CSA, UL Listed
