  6. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 1/2 in Connector, 2 Wires, Unshielded

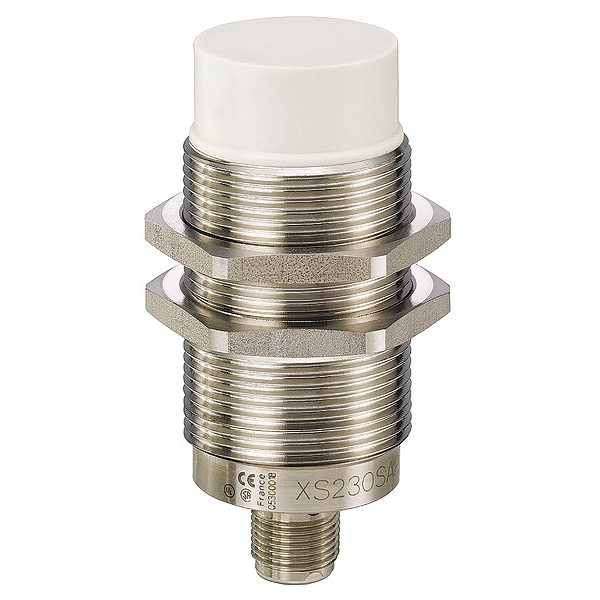

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 1/2 in Connector, 2 Wires, Unshielded XS230SAMAU20 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, 1/2 in Connector, 2 Wires, Unshielded

  • Mfr # XS230SAMAU20

  • Zoro # G1653897

product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
41 mm
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS230SAMAU20
Zoro #
G1653897
UPC #
785901877967
Country of Origin
France

Dimensions

Length
41 mm
Overall Diameter
30 mm
Overall Height
74 mm

Details

Item
Proximity Sensor
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/300 Hz DC
IP Rating
IP67, IP69K
Description/Special Features
Yellow LED Output Indication
Max. Current Load
200mA
Standards
CCC, CE, CSA, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 185 Degrees F
Electrical Connection
1/2 in Connector
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Supply Voltage Limits
20-264 V AC/DC
Switching Capacity
5...200 mA DC || 5...300 mA AC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<5.5 V closed)
Maximum Delay Recovery
2 ms
Body Type
fixed
Series
XS2
Differential Travel
1...15% of Sr
Maximum Delay First Up
30 ms
Maximum Delay Response
0.5 ms
Storage Temp. Range
-40-85 °C
Application
food and beverage
Number of Pins
3
Operating Temperature - Maximum
185 Degrees F
Output Circuit Type
AC/DC-Type
Electrical Installation Type
Direct Connector
Body Finish
Nickel Plated
Sensing Distance - Maximum
40 mm
Sensing Distance - Minimum
15 mm
Output Circuit Number of Wires
2
AC Voltage Rating
24-240V AC
Body Stainless Steel Grade
316L
Load Current - Maximum
300 mA
Style
Cylindrical, Inductive
DC Voltage Rating
24-240V DC
Operating Temperature - Minimum
-13 Degrees F
Body Material
Stainless Steel
Switching Frequency
25 Hz (AC), 300 Hz (DC)
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
4X
Output Circuit Contact Form
NO
Sensing Face Shielding
Unshielded
Features
Yellow LED Indicator

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/300 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material 316L Stainless Steel, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F
