  11. Cylindrical, Inductive Proximity Sensor, 4 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

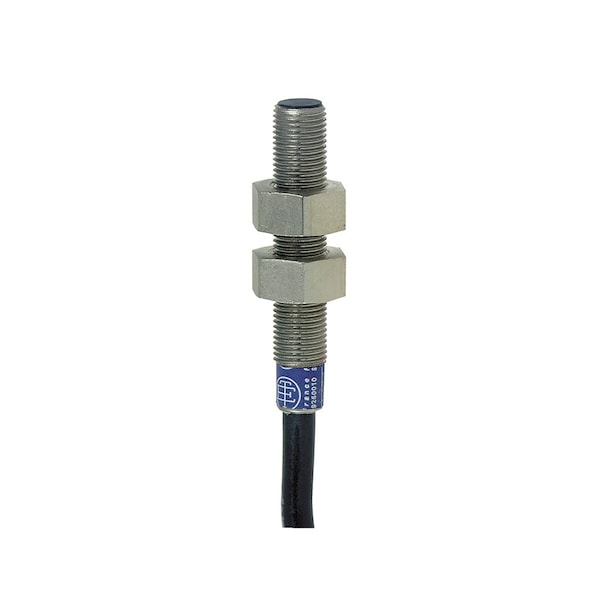

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 4 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded XS1N05NA310 - main

Cylindrical, Inductive Proximity Sensor, 4 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS1N05NA310

  • Zoro # G0563906

product price: $118.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 0.8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
5 to 24V DC
Length
28 mm
Proximity Sensor Electrical Connection
Cable Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS1N05NA310
Zoro #
G0563906
UPC #
785901318644
Country of Origin
France

Dimensions

Length
28 mm
Overall Height
28 mm
Overall Diameter
4 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 0.8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
5 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
Standards
CE, CSA, UL Listed
IP Rating
IP67
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
Bare Wire
Features
Overload Protection, Short Circuit Protection
Application
general purpose
Maximum Delay First Up
5 ms
Storage Temp. Range
-40-85 °C
Maximum Delay Response
1 ms
Supply Voltage Limits
5-30 V DC
Series
XS1
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 100 mA overload and short-circuit protection
Maximum Delay Recovery
1 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Operating Temperature - Maximum
158 Degrees F
Switching Frequency
5,000 Hz
Output Circuit Contact Form
NO
Body Material
Brass
Output Circuit Number of Wires
3
Includes Indicator Lights
Indicator Lights Included
DC Voltage Rating
5-24V DC
Body Finish
Nickel Plated
Output Circuit Type
NPN
Style
Cylindrical, Inductive
Sensing Face Shielding
Shielded
Operating Temperature - Minimum
-13 Degrees F
AC Voltage Rating
Not Rated
Electrical Installation Type
Prewired Cable
Sensing Distance - Maximum
1 mm

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, Standards CE, CSA, UL Listed
