  11. Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires, Shielded

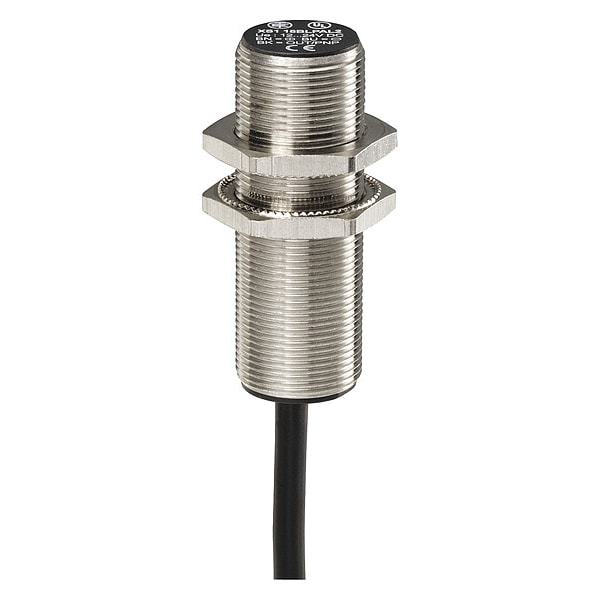

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires, Shielded XS518BLNAL2 - main

Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS518BLNAL2

  • Zoro # G3154159

product price: $93.49
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
62 mm
Proximity Sensor Electrical Connection
Cable Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS518BLNAL2
Zoro #
G3154159
UPC #
785901926788
Country of Origin
France

Dimensions

Length
62 mm
Cable Length
2 m
Overall Height
62 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Electrical Connection
Bare Wire
Standards
CE, CSA, UL Listed
Maximum Delay Recovery
0.35 ms
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Application
general purpose
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
10-58 V DC
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS5
Differential Travel
1...15% of Sr
Maximum Delay Response
0.15 ms
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Style
Cylindrical, Inductive
Output Circuit Type
NPN
Body Finish
Nickel Plated
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NO
Sensing Distance - Maximum
5 mm
Switching Frequency
2,000 Hz
Output Circuit Number of Wires
3
Electrical Installation Type
Prewired Cable
DC Voltage Rating
12-48V DC
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Sensing Face Shielding
Shielded
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F
Body Material
Brass

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP68, IP69K, Standards CE, CSA, UL Listed
