  11. Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires

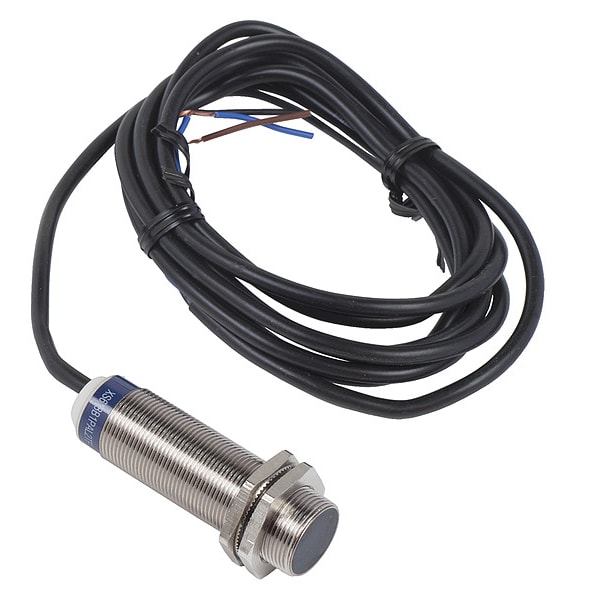

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires XS618B1PAL2TF - main

Cylindrical, Inductive Proximity Sensor, Brass, 2 m, Bare Wire, 3 Wires

  • Mfr # XS618B1PAL2TF

  • Zoro # G0564341

product price: $104.45
/ea
Free Shipping & Returns

Key Features

Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
62 mm
Proximity Sensor Electrical Connection
Cable Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS618B1PAL2TF
Zoro #
G0564341
UPC #
785901476498
Country of Origin
France

Dimensions

Length
62 mm
Overall Height
62 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Standards
CE, CSA, E2, UL Listed
IP Rating
IP68, IP69K
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
Bare Wire
Max. Current Load
10 mA
Operating Temp. Range
-40 to 70 Degrees C
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Application
mobile equipment; general purpose
Series
XS6
Supply Voltage Limits
10-58 V DC
Maximum Delay First Up
10 ms
Storage Temp. Range
-40-85 °C
Differential Travel
1...15% of Sr
Maximum Voltage Drop
<2 V closed)
Maximum Delay Recovery
0.7 ms
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Output Circuit Type
PNP
Style
Cylindrical, Inductive
Body Material
Brass
Includes Indicator Lights
Indicator Lights Included
DC Voltage Rating
12-48V DC
Output Circuit Number of Wires
3
Sensing Distance - Maximum
8 mm
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Output Circuit Contact Form
NO
Electrical Installation Type
Prewired Cable
AC Voltage Rating
Not Rated
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Sensing Distance - Minimum
4 mm
Switching Frequency
1,000 Hz
Body Finish
Nickel Plated

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP68, IP69K, Standards CE, CSA, E2, UL Listed
