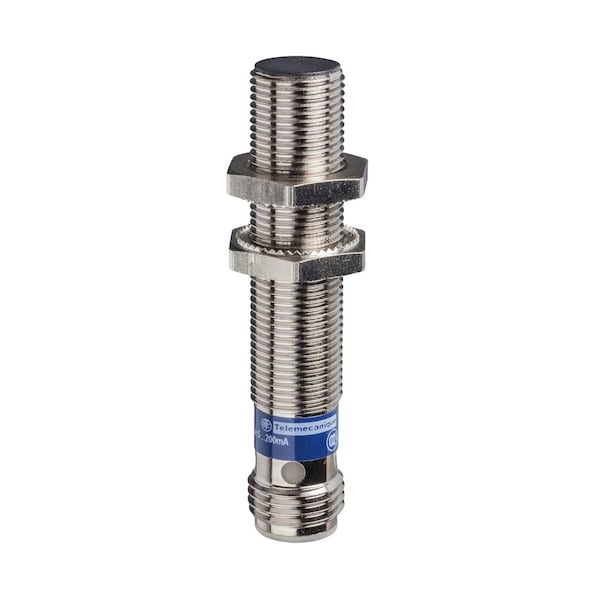

Cylindrical, Inductive Proximity Sensor, Brass, M12, 3 Wires

Mfr # XS112B3PBM12
Zoro # G3153398

73.49

Key Features

Style

Cylindrical, Inductive

Measurement Range

0 to 3.2 mm

Proximity Sensing Method

Inductive

Body Material

Brass

Proximity Sensor Power Requirement

12 to 24V DC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: XS112B3PBM12
Zoro #: G3153398
UPC #: 785901923398
Country of Origin: France

Dimensions

Length: 50 mm
Overall Height: 50 mm
Overall Diameter: 12 mm

Details

Item: Proximity Sensor
Style: Cylindrical, Inductive
Measurement Range: 0 to 3.2 mm
Proximity Sensing Method: Inductive
Body Material: Brass
Proximity Sensor Power Requirement: 12 to 24V DC
Electrical Connection: M12
Output Circuit Type: PNP
Output Circuit Number of Wires: 3
Sensing Distance - Maximum: 4 mm
Output Circuit Contact Form: NC
Standards: CE, CSA, E2, REACH, RoHS, UL Listed
Proximity Sensor Electrical Connection: Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency: Less than Or Equal to 2500 Hz
Description/Special Features: Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load: 10 mA
Operating Temp. Range: -25 to 70 Degrees C
IP Rating: IP65, IP67
Features: 18 months Warranty, Yellow LED Output Indication
Application: mobile equipment; general purpose
Switching Capacity: <= 200 mA overload and short-circuit protection
Maximum Voltage Drop: <2 V closed)
Body Type: fixed
Differential Travel: 1...15% of Sr
Shock Resistance: 50 gn 11 ms IEC 60068-2-27
Vibration Resistance: 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up: 10 ms
Storage Temp. Range: -40-85 °C
Series: XS1
Maximum Delay Recovery: 0.2 ms
Maximum Delay Response: 0.2 ms
Supply Voltage Limits: 10-36 V DC
Operating Temperature - Maximum: 158 Degrees F
Switching Frequency: 2,500 Hz
Load Current - Maximum: 10 mA
Operating Temperature - Minimum: -13 Degrees F
Sensing Method: Inductive
Electrical Installation Type: Direct Connector
Number of Pins: 4
DC Voltage Rating: 12-24V DC
Output Circuit Voltage - Minimum: 12 V DC
Output Circuit Current - Maximum: 200 mA
Sensing Face Shielding: Shielded
Output Circuit Voltage - Maximum: 24 V DC

Description

Inductive Proximity Sensor, IP Rating IP65, IP67, Standards CE, CSA, E2, REACH, RoHS, UL Listed

Documents & Resources

Technical Guide Opens PDF in new window
