  11. Cylindrical Ultrasonic Sensor, PBT, M12

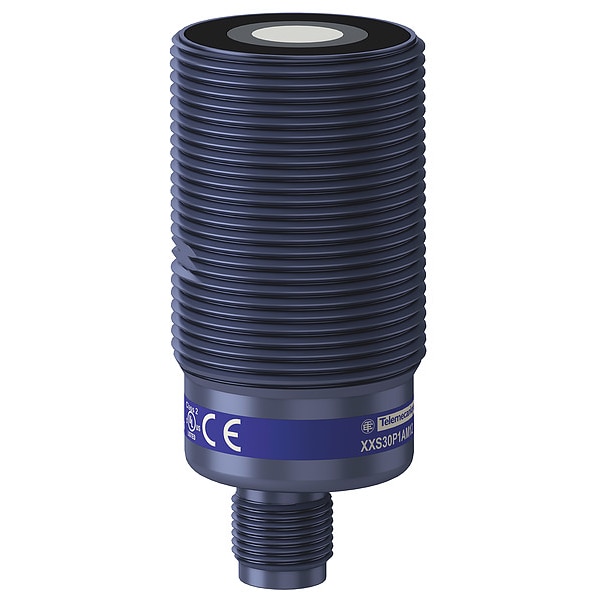

Telemecanique Sensors Cylindrical Ultrasonic Sensor, PBT, M12 XXS30P1AM12 - main

Cylindrical Ultrasonic Sensor, PBT, M12

  • Mfr # XXS30P1AM12

  • Zoro # G3465954

product price: $387.99
/ea
Free Shipping & Returns

Key Features

Case Material
Polybutylene terephthalate (PBT)
Circuit Type
Analogue
Diameter
30 mm
Power Required
10 to 30V DC
Output
4 to 20mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXS30P1AM12
Zoro #
G3465954
UPC #
-
Country of Origin
United States

Dimensions

Diameter
30 mm
Length
1.18 in
Width
1.18 in
Depth
2.53 in
Length (Straight Wireway)
1.18 in
Overall Height
64 mm
Height
30 mm
Minimum Size Of Detected Object
cylinder diameter 1 mm 600 mm
Threaded Length
39.95 mm
Overall Diameter
30 mm

Details

Item
Cylindrical Ultrasonic Sensor
Case Material
Polybutylene terephthalate (PBT)
Circuit Type
Analogue
Power Required
10 to 30V DC
Output
4 to 20mA
Electrical Connection
M12
IP Rating
IP65, IP67
Operating Frequency
200 kHz
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Response Time
100 msec
Standards
CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508
Description/Special Features
With synchronization mode, Software configurable
Material
plastic
Features
M30 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Blind Zone
105-105 mm
Analogue Output Function
4...20 mA
Enclosure Material
PBT
Product Certifications
cULus || E2 || EAC || RCM || Ecolab
[Sd] Sensing Range
0.105-1 m
Function Available
with synchronisation mode || software configurable
Setting-Up
teach mode || configurator software
Wiring Technique
5-wire
Repeat Accuracy
0.001
Sensor Design
cylindrical M30
Ambient Air Temperature For Operation
-25-70°C
Sensor Name
XXS
Ip Degree Of Protection
IP65 conforming to IEC 60529 || IP67
Ambient Air Temperature For Storage
-40-80°C
Marking
CE
Transmission Frequency
200 kHz
Sensor Type
ultrasonic sensor
Maximum Delay First Up
180 ms
Resistance To Electrostatic Discharge
8 kV IEC 61000-4-2
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Detection System
diffuse
Resistance To Fast Transients
2 kV IEC 61000-4-4
Type Of Output Signal
analogue
Deviation Angle From 90° Of Object To Be Detected
-10-10°
Supply Voltage Limits
10-30 V DC
Current Consumption
30 mA
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Status Led
output state 1 LED yellow) || echo state 1 LED green)
Front Material
epoxy || rubber || resin
Maximum Delay Recovery
100 ms
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
Series Name
general purpose
Maximum Switching Capacity
250 Ohm 12 V DC overload and short-circuit protection || 850 Ohm 24 V DC
Body Material
PBT
Output Circuit Type
Analog
Sensing Distance - Maximum
100 cm
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical
Output Circuit Current - Minimum
4 mA
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Number of Pins
5
Voltage Rating
10-30V DC
Sensing Distance - Minimum
11 cm
Series
XXS
Switching Frequency
200 kHz
Output Circuit Current - Maximum
20 mA
Load Current - Maximum
30 mA

Description

Cylindrical Ultrasonic Sensor, Case Material Polybutylene terephthalate (PBT), Diameter 30 mm, 4 to 20mA Output, Circuit Type Analogue, Electrical Connection M12, Length 1.18 in, Width 1.18 in, Depth 2.53 in, Power Required 10 to 30V DC, IP Rating IP65, IP67, Operating Frequency 200 kHz, Standards CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F
