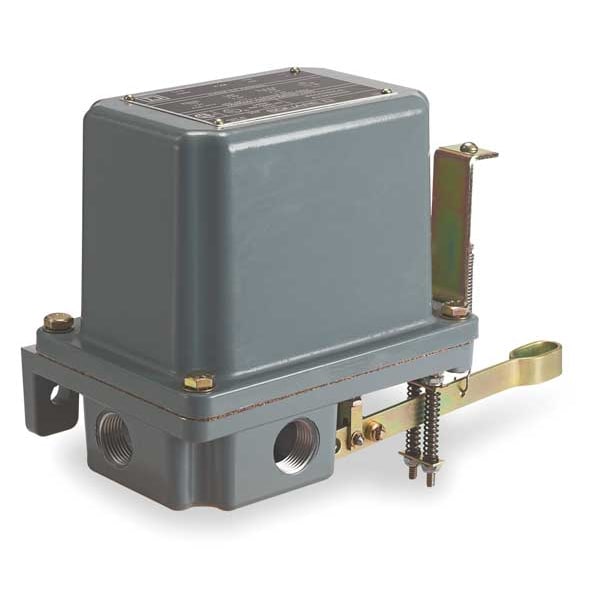

DPST Alternator Open Liquid Level Switch Close on Rise 600VAC

  • Mfr # 9038AW1
  • Zoro # G2120982
product price:
$
850.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
Amps
10 A
Overall Length
11.8 in
Height
4.5 in
Float Position
Below
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9038AW1
Zoro #
G2120982
UPC #
785901591061
Country of Origin
Mexico
Voltage
600V AC
Item
Alternator Open Liquid Level Switch
Amps
10 A
Float Position
Below
HP @ 1 Phase - 120V
2 hp
Max. Voltage
600V
Body Material
Aluminum
NEMA Rating
4
Contact Form
4NC
Mounting
Open Tank
HP @ 3 Phase - 240V
5 hp
Float Travel
1 1/4 in
Electrical Connections
Screw Clamp
Float Material
Stainless Steel
Float Switch Float Material
Stainless Steel
HP @ 1 Phase - 240V
3 hp
Float Rod Angle
Vertical
Switch Function
Close On Rise
Float Switch Contact Form
DPST
Operating Temp. Range
-22 Degrees to 220 Degrees F
VA Rating
460V AC
Max. Current
600 A
Standards
CE, CSA File No.LR25490, UL 508, UL E12158
Series
9038A
Features
Compensating Spring
Product Type
Alternator Open Liquid Level Switch
Electrical Connection
Screw-Clamp Terminal
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
NEMA Enclosure Rating
4
Operating Temperature - Maximum
220 Degrees F
Horsepower @ Single Phase - 240V AC
3 hp
Voltage Rating - Maximum
575 V AC
Current Rating
600 A
Mounting Style
Vertical
Minimum Media Specific Gravity
0.85
Current Rating - Maximum
600 A
Switch Structure
DPST

Dimensions

Overall Length
11.8 in
Height
4.5 in
Float Dia.
7 in
Width
4.69 in
Conduit Size
2 3/4 in
Float Length
7 in
Float Diameter
7 in
Overall Width
4.69 in
Overall Height
4.5 in
Manufacturer Warranty Length
18 mo
Fits Chest Size
Compensating Spring

Description

Alternator Open Liquid Level Switch, Switch Function Close On Rise, Open Tank Mounting, Float Travel 1 1/4 in, NEMA Rating 4, VA Rating 460V AC, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 11.8 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 4.69 in, Contact Form 4NC, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Aluminum, Float Position Below
