  11. External Thread Connector, 125VAC/150VDC

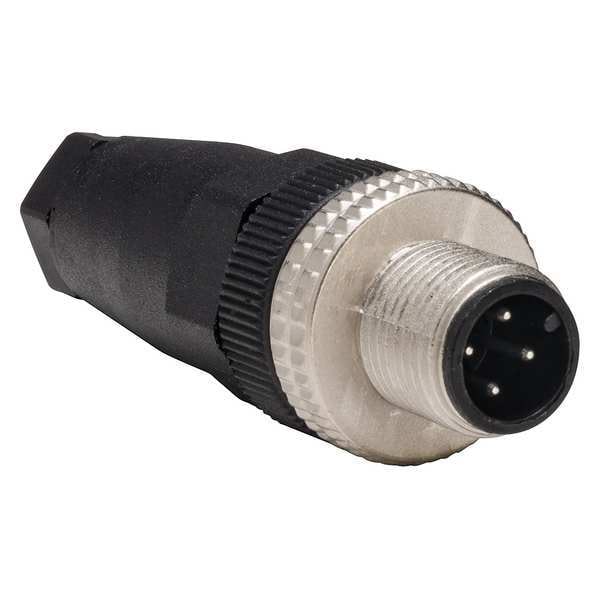

Telemecanique Sensors External Thread Connector, 125VAC/150VDC XZCC12MDM40B - main

External Thread Connector, 125VAC/150VDC

  • Mfr # XZCC12MDM40B

  • Zoro # G1983339

product price: $15.29
/ea

Key Features

End 1 Number of Pins
4
Jacket Color
Black
Wire Size
18 AWG
IP Rating
IP67
Body Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XZCC12MDM40B
Zoro #
G1983339
UPC #
785901681854
Country of Origin
Czechia

Dimensions

Wire Size
18 AWG
Flange Size
0.79 in
Cable Outside Diameter
20.1 mm
Thread Size
M12

Details

Item
External Thread Connector
End 1 Number of Pins
4
Jacket Color
Black
IP Rating
IP67
Body Material
Metal
End 1 Thread
M12
Keyway
Single
Plug End
Straight
Plug or Connector Type
Male
Number of Conductors
4
End 2 Gender and Plug End
Screw Terminal
Number of Pins
4
End 2 Connection Type
Bare Wire
Max. Voltage
125V AC/150V DC
Color
Black and Silver
Standards
CSA Certified, IEC, UL Listed
End 1 Connection Type
Plug
Temp. Range
-40 Degrees To 85 Degrees C
Threads
M12
End 1 Keyway
Single
Max. Current
3 A
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
End 1 Gender and Plug End
Male Straight
Max. Amps
3A
Housing Material
Plastic
Minimum Operating Temperature
-40 Degrees F
Insulation Resistance
1,000,000 megaohm
Maximum Contact Resistance
8 milliOhm
Connection Type
Cable Assembly
Number of Contacts
4 Pin
Maximum Operating Temperature
185 Degrees F
Mounting Style
Male Thread
Locking Style
Screw Connection
Number of Poles
4
Connector Body Type
Pin
Construction
One-Piece
Connector Orientation
Straight
Nominal Current
3 A
Voltage Rating
125V AC, 150V DC
Cable Connector Fixing
screw-on
Ip Degree Of Protection
IP67
Contact Resistance
8000µOhm
Collar Material
metal
Line Rated Current
3A
Ambient Air Temperature For Operation
-40-85°C
[Ue] Rated Operational Voltage
125 V AC || 150 V DC
Accessory / Separate Part Type
connector
Electrical Connection
straight male connector M12, 4 pins
Enclosure Material
Plastic
Minimum Insulating Resistance
1000 GΩ
Status Led
without
Accessory / Separate Part Category
cabling accessories
Cable Gland Type
Pg 7
Cable Connection
screw terminal 0.75 mm² 3-6 mm

Description

External Thread Connector, Mounting Style Male Thread, Number of Poles 4, Connection Type Cable Assembly, Construction One-Piece, Thread Size M12, Voltage Rating 125V AC, 150V DC, Nominal Voltage 125V AC, 150V DC, Nominal Current 3 A, Locking Style Screw Connection, Flange Size 0.79 in, Housing Material Plastic, Connector Body Type Pin, Cable Outside Diameter 20.1 mm, Connector Orientation Straight, Maximum Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, IP Rating IP67
