  8. Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

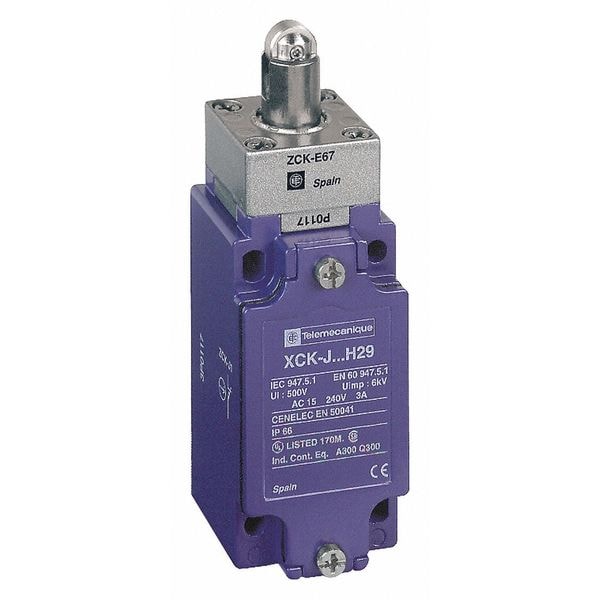

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKJ167H7 - main

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKJ167H7

  • Zoro # G1221927

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ167H7
Zoro #
G1221927
UPC #
785901237716
Country of Origin
France

Dimensions

Roller Width
0.2 in
Roller Dia.
0.47 in
Body Width - Limit Switch
1.57 in
Actuator Length - Limit Switch
0.79 in
Actuator Length
0.79"
Body Height - Limit Switch
4.01 in
Width
1.57"
Height
3.94"
Depth
1.73"
Body Depth - Limit Switch
2.36 in
Body Height
4.01 in
Body Depth
1.73 in
Mounting Hole Diameter
0.21 in
Roller Diameter
0.47 in
Manufacturer Warranty Length
18 mo
Body Width
1.57 in
Overall Width
1.57 in
Overall Depth
1.73 in
Overall Height
3.03 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Plunger, Roller
Body Style (Limit Switch)
Standard
Operating Force
3.6 in-lb
Mounting Hole - Limit Switch
(4) 0.21 in dia
Limit Switch Style
Heavy Duty Limit Switch
Boot Sealed Actuator (Limit Switch)
No
Contact Form
1NO/1NC
Wiring Entry
1/2 in NPT
Standards
CE, CSA, UL Listed
Actuator Location
Top
Contact Form - Limit Switch
1NC/1NO
IP Rating
IP66
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Actuator Style
Roller Plunger
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Amps
10
Operating Temp. Range
-13 Degrees to 158 Degrees F
Basic Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 12, 13, 2, 4
Body Material
Zamak
Voltage Rating
240VAC/DC
Boot Sealed Actuator - Limit Switch
No
AC Contact Rating
10 A @ 240 V
Actuator Location (Limit Switch)
Top
Roller Material
Steel
Movement
Horizontal
Series
XCKJ
Travel
0.32 in
Electrical Connection
Screw Clamp Terminals
DC Contact Rating
10 A @ 240 V
Stem Thread - Limit Switch
No Stem
Special Features
lateral approach, 2 directions
Certification
CSA || CCC || UL
Head Material
zamak
Mechanical Durability
25000000 cycles
Weight
0.455 kg
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Min. Actuation Velocity Horizontal
1 m/s
Short Circuit Protection
10 A cartridge fuse gG
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
plunger head
Actuation Type
by 30° cam
Type Of Operator
spring return roller plunger metal reinforced
Number Of Poles
2
Mounting Hole Vertical Center to Center Distance
60 mm
Directional Movement
Linear
Operating Torque - Maximum
3.6 in-lb
Number of Mounting Holes
4
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Hole Horizontal Center to Center Distance
30 mm
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Operating Force - Maximum
16 N

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.79 in, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4
