  11. Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded

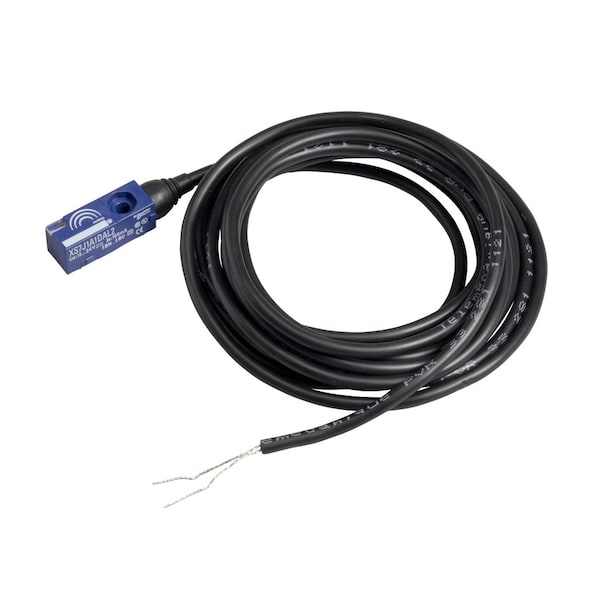

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded XS7J1A1DAL2 - main

Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS7J1A1DAL2

  • Zoro # G0564046

product price: $72.25
/ea

Key Features

Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
22 mm
Width
8 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS7J1A1DAL2
Zoro #
G0564046
UPC #
785901659037
Country of Origin
Indonesia

Dimensions

Length
22 mm
Width
8 mm
Depth
8 mm
Overall Height
22 mm
Overall Width
8 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 4000 Hz
IP Rating
IP67
Electrical Connection
Bare Wire
Standards
C-Tick, CE, CSA, UL Listed
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Operating Temp. Range
-25 to 70 Degrees C
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
general purpose
Maximum Delay First Up
10 ms
Maximum Delay Recovery
1 ms
Switching Capacity
1.5...100 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS7
Body Type
fixed
Maximum Voltage Drop
<4 V closed)
Supply Voltage Limits
10-36 V DC
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.5 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Number of Wires
2
AC Voltage Rating
Not Rated
Switching Frequency
4,000 Hz
Style
Inductive, Rectangular
Sensing Face Shielding
Shielded
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
158 Degrees F
Output Circuit Contact Form
NO
Body Material
PBT
DC Voltage Rating
12-24V DC
Output Circuit Type
DC-Type
Sensing Distance - Maximum
2 mm

Description

Inductive Rectangular Proximity Sensor, IP Rating IP67, Standards C-Tick, CE, CSA, UL Listed
