  11. Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 4 Wires, Shielded

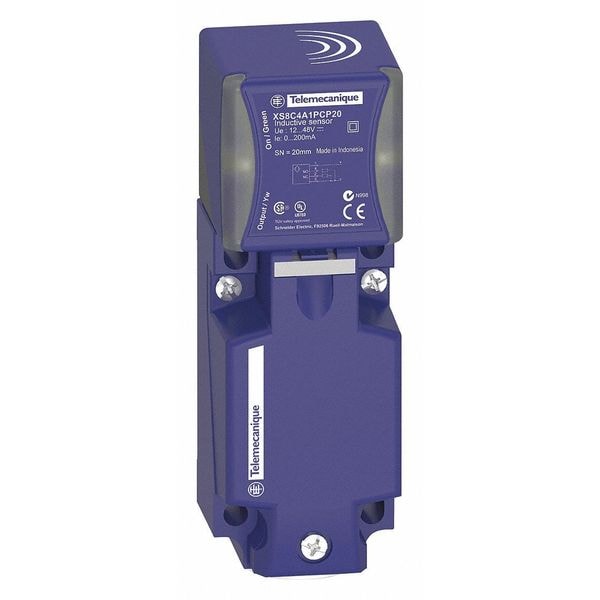

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 4 Wires, Shielded XS8C4A1PCN12 - main

Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 4 Wires, Shielded

  • Mfr # XS8C4A1PCN12

  • Zoro # G4551915

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 16 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
40 mm
Width
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8C4A1PCN12
Zoro #
G4551915
UPC #
00389119058264
Country of Origin
France

Dimensions

Length
40 mm
Width
40 mm
Depth
117 mm
Overall Depth
40 mm
Overall Height
117 mm
Overall Width
40 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 16 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
Screw Clamp Terminal
Proximity Sensor Operating Frequency
300 Hz
Description/Special Features
1 Green LED for Supply On, Overload and Short-Circuit Protection, Reverse Polarity Protection
Standards
CCC, CE, CSA, E2, RoHS, UL Listed
Max. Current Load
200mA
IP Rating
IP65, IP67, IP69K
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
Bare Wire
Differential Travel
3...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Body Type
fixed
Supply Voltage Limits
10-58 V DC
Switching Capacity
<= 200 mA overload and short-circuit protection
Series
XS8
Maximum Delay Response
1.2 ms
Application
mobile equipment; general purpose
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
7.5 ms
Shock Resistance
50 gn 11 msEN 60068-2-27
Maximum Delay Recovery
1.8 ms
Sensing Distance - Maximum
20 mm
Output Circuit Type
PNP
Sensing Face Shielding
Shielded
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NO/NC
Output Circuit Number of Wires
4
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
12-48V DC
Operating Temperature - Minimum
-13 Degrees F
Body Material
PBT
Switching Frequency
300 Hz
Electrical Installation Type
Screw Clamp Terminal
Style
Inductive, Rectangular
AC Voltage Rating
Not Rated
Load Current - Maximum
200 mA

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 4 Wire PNP, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection Screw Clamp Terminal, Output Mode NO/NC, IP Rating IP65, IP67, IP69K, Case Material Plastic, Length 40 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
