  11. Inductive, Rectangular Proximity Sensor, PBT, M12, 3 Wires, Shielded

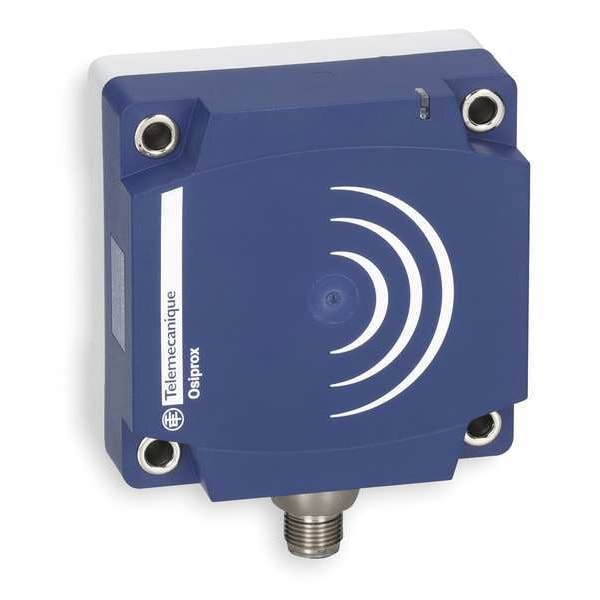

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, M12, 3 Wires, Shielded XS7D1A1PAM12 - main

Inductive, Rectangular Proximity Sensor, PBT, M12, 3 Wires, Shielded

  • Mfr # XS7D1A1PAM12

  • Zoro # G1438771

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 32 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
80 mm
Width
80 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS7D1A1PAM12
Zoro #
G1438771
UPC #
785901545507
Country of Origin
Indonesia

Dimensions

Length
80 mm
Width
80 mm
Depth
26 mm
Overall Height
26 mm
Overall Depth
80 mm
Overall Width
80 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 32 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Male Connector
Proximity Sensor Operating Frequency
100 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
C-Tick, CE, CSA, Ecolab, RoHS, UL Listed
Max. Current Load
100mA
Description/Special Features
LED Indicator
IP Rating
IP67
Electrical Connection
M12
Maximum Delay Recovery
35 ms
Series
XS7
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Maximum Delay Response
5 ms
Supply Voltage Limits
10-36 V DC
Application
general purpose
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
30 ms
Differential Travel
1...15% of Sr
Electrical Installation Type
Direct Connector
Load Current - Maximum
100 mA
Operating Temperature - Maximum
158 Degrees F
Body Material
PBT
Number of Pins
4
Includes Indicator Lights
Indicator Lights Included
Output Circuit Number of Wires
3
Switching Frequency
100 Hz
DC Voltage Rating
12-24V DC
NEMA Enclosure Rating
4X
Output Circuit Contact Form
NO
AC Voltage Rating
Not Rated
Sensing Face Shielding
Shielded
Style
Inductive, Rectangular
Output Circuit Type
PNP
Sensing Distance - Maximum
40 mm
Operating Temperature - Minimum
-13 Degrees F

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 40 mm, Proximity Sensor Electrical Connection 4 Pin M12 Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Plastic, Length 80 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA, Description/Special Features LED Indicator
