  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

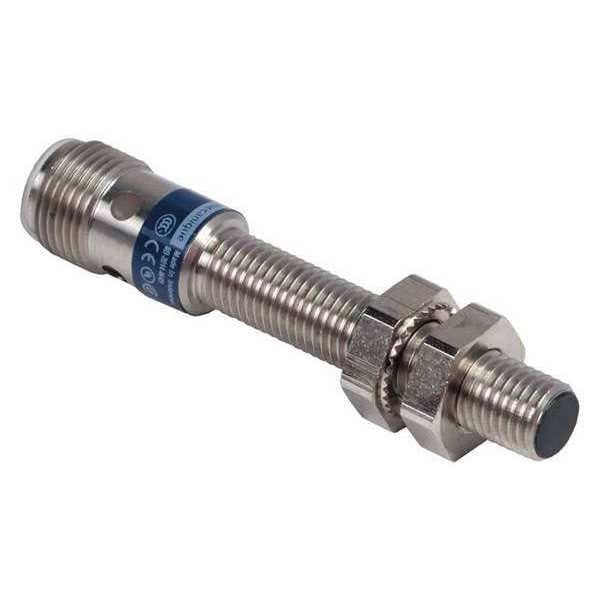

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded XS608B1PBM12 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # XS608B1PBM12

  • Zoro # G6106931

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 2.5 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
62 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS608B1PBM12
Zoro #
G6106931
UPC #
785901495659
Country of Origin
Multiple

Dimensions

Length
62 mm
Overall Diameter
12 mm
Overall Height
62 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 2.5 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2,500 Hz
IP Rating
IP65, IP67
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Standards
CE, CSA, RoHS, UL Listed
Electrical Connection
M12
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.2 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
10-58 V DC
Maximum Delay Recovery
0.2 ms
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Series
XS6
Application
general purpose
Maximum Delay First Up
10 ms
Output Circuit Contact Form
NC
Sensing Distance - Minimum
0 mm
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Output Circuit Number of Wires
3
Load Current - Maximum
200 mA
Switching Frequency
2,500 Hz
Output Circuit Type
PNP
Includes Indicator Lights
Indicator Lights Included
Body Finish
Nickel Plated
Operating Temperature - Minimum
-13 Degrees F
Number of Pins
4
Body Stainless Steel Grade
303
Sensing Distance - Maximum
3 mm
Body Material
Stainless Steel
Operating Temperature - Maximum
158 Degrees F
Sensing Face Shielding
Shielded
AC Voltage Rating
Not Rated
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-48V DC
Style
Cylindrical, Inductive

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2.5 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP67, Case Material 303 Stainless Steel, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
