Telemecanique Sensors

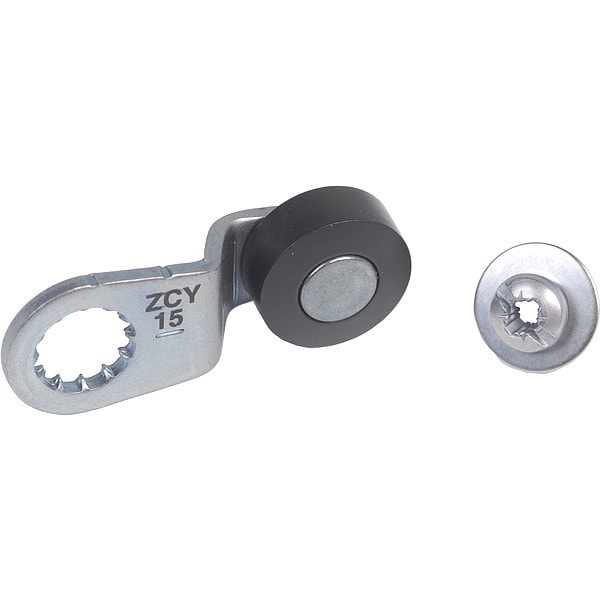

Lever Arm, Plastic Roller, 1.35 In. Arm L

product price: $1.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With Mfr. No. XCMD, XCKD, XCKP, XCKT
  • Arm Width 0.08 in
  • Roller Material Thermoplastic
  • Arm Material Steel
  • Roller Position Offset
See all product information

Product Information

Dimensions

Arm Width 0.08 in
Arm Depth 0.13 in
Roller Width 0.63 in
Arm Length 1.35 in
Roller Dia. 0.63 in
Manufacturer Warranty Length 18 mo
Roller Diameter 0.63 in
Arm Length - Maximum 1.35 in

Details

Item Limit Switch Lever Arm
For Use With Mfr. No. XCMD, XCKD, XCKP, XCKT
Roller Material Thermoplastic
Arm Material Steel
Roller Position Offset
Actuator Type Standard Roller
Standards EU RoHS, REACH
Actuator Style Rotary Lever Roller
Movement Of Operating Head rotary
Product Or Component Type limit switch lever
Type Of Approach lateral approach
Tracks 24/31 mm XCMD || 29/36 mm XCKD || 29/36 mm XCKP || 29/36 mm XCKT
Ambient Air Temperature For Storage -40-70°C
Series Name standard format
Associated Head ZCE01 || ZCE05
Environmental Characteristic standard environment
Product Compatibility XCMD || XCKP || XCKT || XCKD
Positive Opening with
Device Short Name ZCY
Ambient Air Temperature For Operation -25-70°C
Switch Actuation by 30° cam
Type Of Operator roller lever spring return thermoplastic
Operating Temperature - Minimum -13 Degrees F
Operating Temperature - Maximum 158 Degrees F
Compatible with Series XCKD, XCKP, XCKT, XCMD

Description

Limit Switch Lever Arm, Actuator Type Standard Roller, For Use With Mfr. No. XCMD, XCKD, XCKP, XCKT, Arm Length 1.35 in, Roller Position Offset, Roller Dia. 0.63 in, Roller Width 0.63 in, Arm Material Steel, Roller Material Thermoplastic, Arm Width 0.08 in, Arm Depth 0.13 in
