DC Contact Rating
0.1 A @ 250 V
AC Contact Rating
1.5 A @ 240 V
Electrical Connection
Screw Clamp Terminals
Electrical Durability
5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
NEMA Enclosure Rating
1, 12, 4
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Indicating Light
No Indicating Light Included
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
21 mm
Compatible with Series
XCKP
Body Configuration
Non Plug-In
Product Compatibility
XCKP
Contacts Type And Composition
2 NC
Series Name
Standard compact
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Product Or Component Type

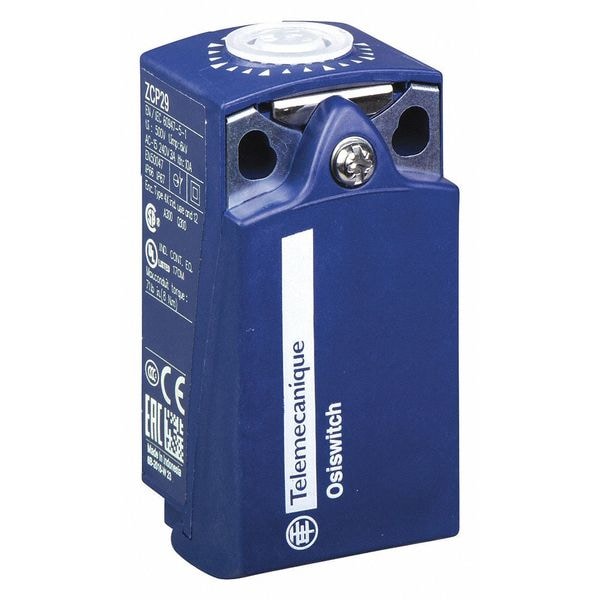

limit switch body
