  8. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

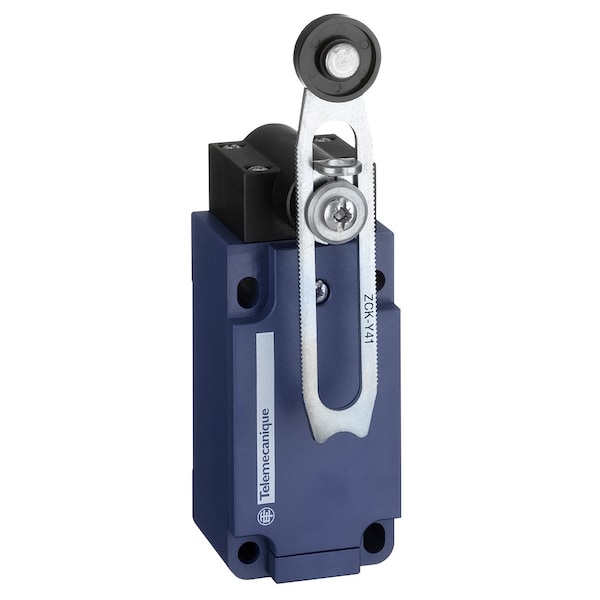

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKS141 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKS141

  • Zoro # G0560187

product price:  $54.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKS141
Zoro #
G0560187
UPC #
785901170822
Country of Origin
Indonesia

Dimensions

Width
40 mm
Body Height - Limit Switch
117-172 mm
Body Depth - Limit Switch
57 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Body Style (Limit Switch)
fixed
Head Material
plastic
Standards
UL 508, IEC 60204-1, EN 60947-5-1, IEC 60947-5-1, CENELEC EN 50041, EN 60204-1, CSA C22.2 No 14
Series
XCKS
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Body Material
plastic
IP Rating
IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Movement
rotary
Special Features
lateral approach, 1 or 2 programmable direction
Operating Temp. Range
-25-70 Degrees C
Certification
UL, CSA, CCC
Actuator Style
Roller Lever Plunger
Weight
0.165 kg
Contact Action
snap action
Actuation Type
by 30 Degree cam
Mechanical Durability
20000000 cycles
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
1.5 m/s
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
rotary head
Short Circuit Protection
10 A cartridge fuse gG
Shock Resistance
40 gn 11 ms IEC 60068-2-27
Operating Torque - Maximum
0.89 in-lb
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic variable length

Description

Limit Switch
