Shop TELEMECANIQUE SENSORS

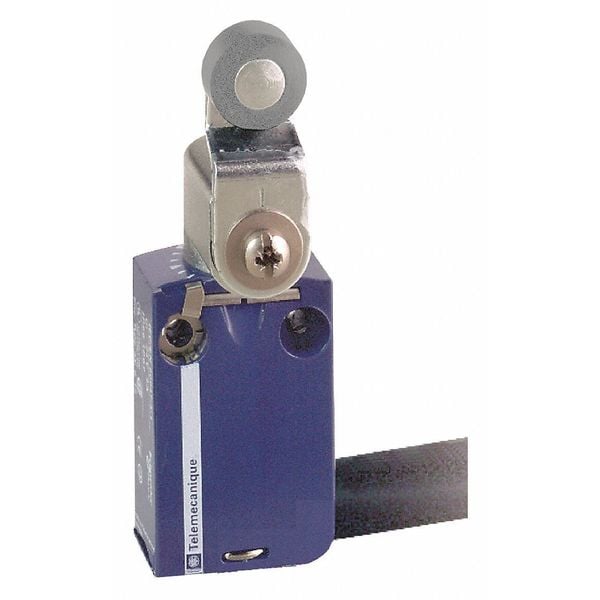

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 6A at 240V AC, Actuator Location: Side

  • Mfr # XCMD2116L1

  • Zoro # G0473216

product price:
$
79.25
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCMD2116L1
Zoro #
G0473216
UPC #
785901470731
Country of Origin
Indonesia

Dimensions

Actuator Length
1.36"
Height
1.97"
Depth
0.63"
Actuator Length - Limit Switch
1.36 in
Body Height - Limit Switch
1.97 in
Roller Width
0.23 in
Roller Dia.
0.63 in
Body Width - Limit Switch
1.18 in
Body Depth - Limit Switch
0.63 in
Width
1.18"
Cable Length
1 m
Overall Height
1.97 in
Manufacturer Warranty Length
18 mo
Body Width
1.18 in
Roller Diameter
0.63 in
Mounting Hole Diameter
0.17 in
Body Height
1.97 in
Overall Depth
0.63 in
Body Depth
0.63 in
Overall Width
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
240VAC/DC
IP Rating
IP66, IP67, IP68
Roller Material
Steel
Actuator Location
Side
Boot Sealed Actuator (Limit Switch)
No
Actuator Style (Limit Switch)
Rotary, Roller Lever
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Wiring Entry
Plug-In Cable
Contact Form
1NO/1NC
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Body Material
Zamak
Mounting Hole - Limit Switch
(2) 0.16 in dia
Operating Temp. Range
-13 Degrees to 158 Degrees F
Contact Form - Limit Switch
1NC/1NO
Electrical Connection
Pre-Wired Cable
Actuator Style
Roller Lever Plunger
DC Contact Rating
0.1 A @ 250 V
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Spacing - Limit Switch
0.79 in
Series
XCMD
AC Contact Rating
1.5 A @ 240 V
Body Style (Limit Switch)
Miniature
Movement
CCW, CW
Operating Force
0.9 in-lb
Travel
90 Degrees
Actuator Location (Limit Switch)
Side
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Amps
6
Arm Material
Metal
Basic Actuator Style (Limit Switch)
Rotary
Boot Sealed Actuator - Limit Switch
No
Certification
UL || CCC || CSA
Special Features
lateral approach, 2 directions
Head Material
zamak
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Contact Action
snap action
Mechanical Durability
10000000 cycles
Head Type
rotary head
Weight
0.225 kg
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
1.5 m/s
Short Circuit Protection
6 A cartridge fuse gG
Actuation Type
by 30° cam
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Number Of Poles
2
Type Of Operator
spring return roller lever metal
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Directional Movement
CCW/CW
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Torque - Maximum
0.9 in-lb
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
20 mm

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.36 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
