  15. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side

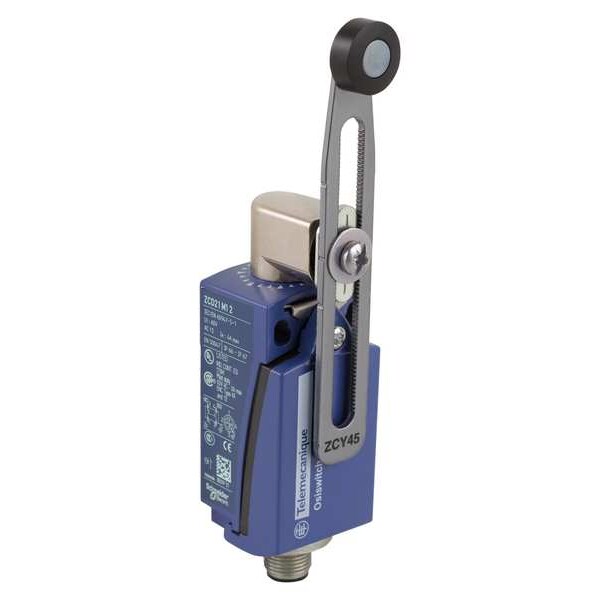

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side XCKD2145M12 - main

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side

  • Mfr # XCKD2145M12

  • Zoro # G0580675

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKD2145M12
Zoro #
G0580675
UPC #
785901614753
Country of Origin
France

Dimensions

Actuator Length
1.30" to 3.29"
Width
1.22"
Body Depth - Limit Switch
1.18 in
Roller Dia.
0.63 in
Body Width - Limit Switch
1.22 in
Height
2.56"
Depth
1.18"
Actuator Length - Limit Switch
1.30 in to 3.29 in
Roller Width
0.22 in
Body Height - Limit Switch
2.56 in
Body Height
2.56 in
Overall Width
1.22 in
Mounting Hole Diameter
0.17 in
Manufacturer Warranty Length
18 mo
Body Width
1.22 in
Body Depth
1.18 in
Roller Diameter
0.63 in
Overall Height
2.56 in
Overall Depth
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
DC Contact Rating - Limit Switch
4A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
DC Contact Rating
4A at 240V
Actuator Style
Adjustable Roller Lever
Electrical Connection
M12 5-Pin Connector
Actuator Style (Limit Switch)
Rotary, Adjustable Roller Lever
Arm Material
Zinc
Actuator Location (Limit Switch)
Side
IP Rating
67
Amps
4
Limit Switch Style
General Purpose Limit Switch
NEMA Rating
3, 3S, 4X, 6P
Mounting Hole - Limit Switch
(2) 0.17 in dia
Body Style (Limit Switch)
Miniature
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location
Side
Travel
Total Travel 90 Degrees
Operating Temp. Range
-13 Degrees to 158 Degrees F
AC Contact Rating
4A at 240V
Operating Force
0.9 in-lb
Boot Sealed Actuator - Limit Switch
No
Stem Thread - Limit Switch
No Stem
Contact Form
1NC/1NO
Roller Material
Thermoplastic
Movement
CCW, CW
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Series
XCKD
Standards
CE, CSA, UL
Wiring Entry
Connector
Voltage Rating
240VAC/DC
Body Material
Zinc
Mounting Hole Spacing - Limit Switch
0.75 in
Boot Sealed Actuator (Limit Switch)
No
Head Material
zamak
Certification
UL || CSA || CCC
Special Features
lateral approach, 2 directions
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Mechanical Durability
10000000 cycles
Weight
0.22 kg
Short Circuit Protection
4 A cartridge fuse gG
Actuation Type
by 30° cam
Head Type
rotary head
Min. Actuation Velocity Horizontal
1.5 m/s
Electrical Durability
5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Type Of Operator
spring return roller lever thermoplastic variable length
Number Of Poles
2
Mounting Hole Horizontal Center to Center Distance
22 mm
Total Travel
90 Degrees
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
0.9 in-lb
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Operating Temperature - Minimum
-13 Degrees F
Number of Mounting Holes
2
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
3, 3S, 4X, 6P
Directional Movement
CCW/CW

Description

Limit Switch, Actuator Style - Limit Switch Adjustable Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 240V, DC Contact Rating - Limit Switch 4A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 3, 3S, 4X, 6P
