  15. Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side

This item is Discontinued.

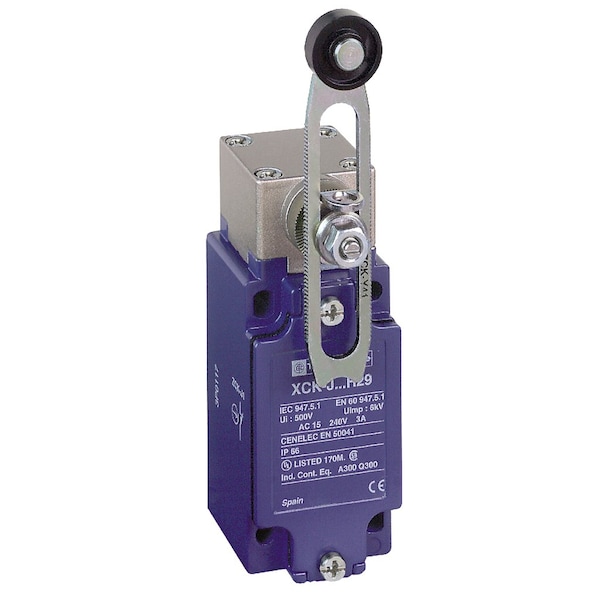

Telemecanique Sensors Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side XCKJ50541

Limit Switch, Adjustable Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side (Discontinued)

  • Mfr # XCKJ50541
  • Zoro # G3983354
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKJ50541
Zoro #
G3983354
UPC #
-
Country of Origin
Indonesia

Dimensions

Body Depth - Limit Switch
44 mm
Body Height - Limit Switch
77 mm
Width
40 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Series
XCKJ
Body Style (Limit Switch)
fixed
Certification
CCC || UL || CSA
Standards
IEC 60204-1 || EN 60204-1 || CSA C22.2 No 14 || UL 508 || CENELEC EN 50041 || IEC 60947-5-1 || EN 60947-5-1
Special Features
lateral approach, 1 or 2 programmable direction
Electrical Connection
screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Body Material
zamak
Head Material
zamak
IP Rating
IP66 conforming to IEC 60529
Operating Temp. Range
-25-70 °C
Movement
rotary
Mechanical Durability
30000000 cycles
Contact Action
slow-break, break before make
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Weight
0.485 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Min. Actuation Velocity Horizontal
1.5 m/s
Head Type
rotary head
Actuation Type
by 30° cam
Short Circuit Protection
10 A cartridge fuse gG
Type Of Operator
spring return roller lever thermoplastic variable length
Number Of Poles
2

Description

Limit switch XCKJ - th.plastic roller le
