Electrical Connection
Screw Clamp Terminals
AC Contact Rating
3 A @ 240 V
DC Contact Rating
0.27 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Compatible with Series
XCKL
Body Configuration
Non Plug-In
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
41 mm
Indicating Light
No Indicating Light Included
Compatible with Manufacturer Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
NEMA Enclosure Rating
1, 12, 2, 3, 4
Ambient Air Temperature For Operation
-25-70°C standard environment
Cable Entry
1 entry tapped for 1/2" NPT conduit
Ip Degree Of Protection
IP66
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Product Or Component Type

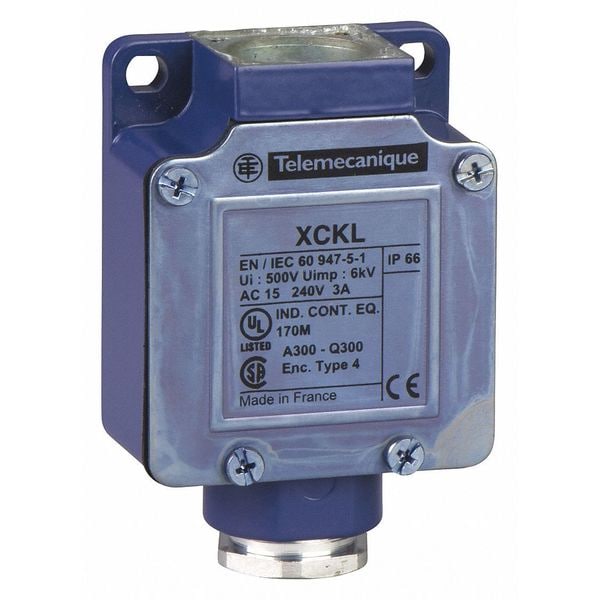

limit switch body
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Ambient Air Temperature For Storage
-40-70°C
Product Compatibility
XCKL
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Associated Head
ZCKD21 || ZCKD109 || ZCKD02 || ZCKD23 || ZCKD59 || ZCKD10 || ZCKD239 || ZCKD91 || ZCKD41 || ZCKD17 || ZCKD06 || ZCKD029 || ZCKD16 || ZCKD05 || ZCKD81 || ZCKD15 || ZCKD219 || ZCKD08
[Ithe] Conventional Enclosed Thermal Current
10 A
Contacts Material
silver plated contacts
Short-Circuit Protection
6 A cartridge fuse gG
Contact Operation
slow-break, break before make
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60664 || 4 kV IEC 60947-1
Terminals Description Iso N°1
(31-32)NC || (13-14)NO || (33-34)NO
Environmental Characteristic
standard environment
Contacts Type And Composition
1 NC + 1 NO
Ik Degree Of Protection
IK05
Minimum Actuation Speed
6 m/min
Number Of Steps
1 1 position
