  8. Limit Switch, Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

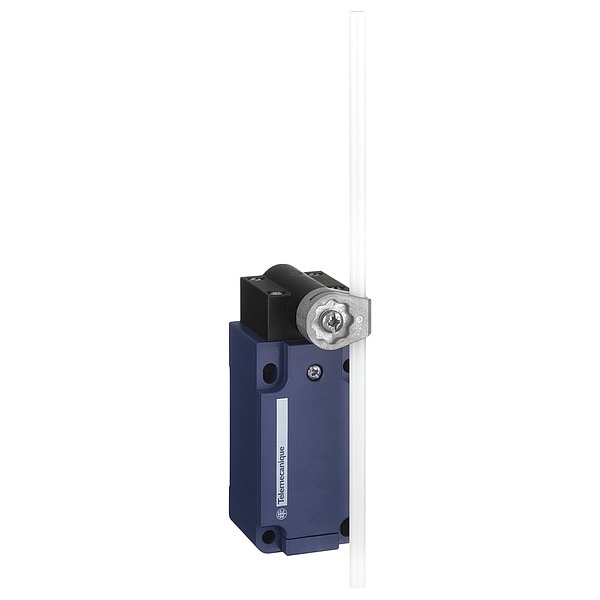

Telemecanique Sensors Limit Switch, Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side XCKS159H7 - main

Limit Switch, Lever, Rotary, 1NC/1NO, 3A at 240V AC, Actuator Location: Side

  • Mfr # XCKS159H7

  • Zoro # G0200395

product price:  $65.79
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKS159H7
Zoro #
G0200395
UPC #
785901713944
Country of Origin
Indonesia

Dimensions

Body Depth - Limit Switch
55 mm
Body Height - Limit Switch
98-280 mm
Width
40 mm
Body Width - Limit Switch
1.57 in
Overall Height
11.02 in
Overall Depth
2.17 in
Overall Width
1.57 in
Body Width
1.57 in
Body Depth
1.46 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Arm Material
Thermoplastic
Actuator Style
Rod
Movement
rotary
IP Rating
66, 67
Contact Form
1NC/1NO
Contact Form - Limit Switch
1NC/1NO
Standards
CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508
Special Features
1 or 2 programmable direction, Lateral approach
Series
XCKS
Body Style (Limit Switch)
fixed
Actuator Location
Side
Wiring Entry
1/2 in NPT
Certification
CCC, CSA, UL
Body Material
Plastic
Head Material
plastic
AC Contact Rating
3 A @ 240 V
DC Contact Rating
0.27 A @ 250 V
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Electrical Connection
Screw Terminals
Shock Resistance
40 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
20000000 cycles
Weight
0.17 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Head Type
rotary head
Min. Actuation Velocity Horizontal
1 m/s
Actuation Type
by any moving part
Short Circuit Protection
10 A cartridge fuse gG
Contact Action
snap action
Mounting Style
Surface
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
0.89 in-lb
Number Of Poles
2
Type Of Operator
spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm

Description

Limit switch, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Body Width - Limit Switch 1.57 in, Body Style - Limit Switch Miniature, Mounting - Limit Switch Surface, Electrical Connection Screw Clamp Terminals, IP Rating IP66, IP67, Special Features 1 or 2 programmable direction, Lateral approach
