  15. Limit Switch, NC-NO, Form Z, 10A at 600V AC

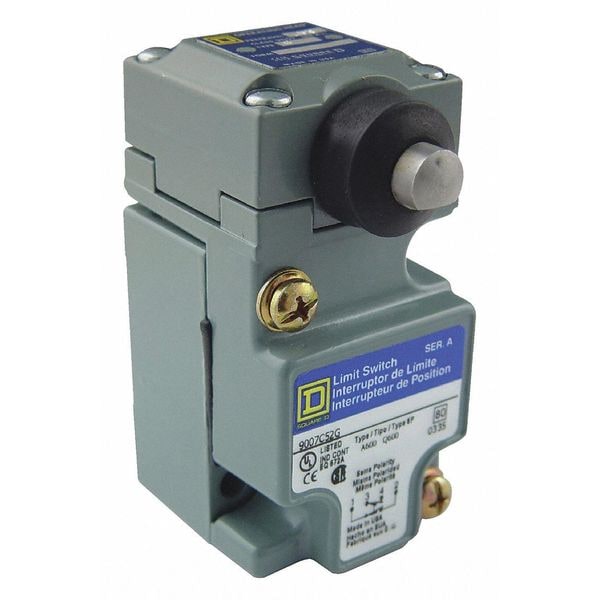

Telemecanique Sensors Limit Switch, NC-NO, Form Z, 10A at 600V AC 9007C52G - main

Limit Switch, NC-NO, Form Z, 10A at 600V AC

  • Mfr # 9007C52G

  • Zoro # G0560747

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Contact Form- Switches
NC-NO; Form Z
AC Contact Rating - Limit Switch
10A @ 600V
Amps
10
IP Rating
IP67 conforming to IEC 60529
Body Height - Limit Switch
3.14 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007C52G
Zoro #
G0560747
UPC #
785901783459
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
3.14 in
Width
1.55 in
Body Depth - Limit Switch
2.16 in

Details

Item
Limit Switch
Contact Form- Switches
NC-NO; Form Z
AC Contact Rating - Limit Switch
10A @ 600V
Amps
10
IP Rating
IP67 conforming to IEC 60529
Movement
linear
Contact Material
silver contacts
NEMA Rating
NEMA 1 Nema type 250, NEMA 2 Nema type 250, NEMA 4 Nema type 250, NEMA 6 Nema type 250, NEMA 6P Nema type 250, NEMA 12 Nema type 250, NEMA 13 Nema type 250
Actuator Style
Plunger
Body Style (Limit Switch)
plug-in
Electrical Connection
screw-clamp terminals AWG 22...AWG 12), 1-2
Series
9007C
Standards
2.5 kV AC 1 min CE, 2.2 kV AC 1 min UL, 2.64 kV AC 1 s CSA
Operating Temp. Range
-20-185 Degrees F standard environment
Special Features
lateral approach, 1 direction
Body Material
zinc, metal
Head Material
zinc
Contact Form
Form Z
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Actuation Type
on end
Mechanical Durability
10000000 cycles
Short Circuit Protection
10 A CC non-time delay
Head Type
plunger head
Electrical Durability
1000000 cycles
Body Configuration
Plug-In
Pretravel
0.08 in
Operating Force - Maximum
4 lbf
Number Of Poles
1
Type Of Operator
stainless steel spring return side plunger

Description

Plug-In Limit Switch
