  8. Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

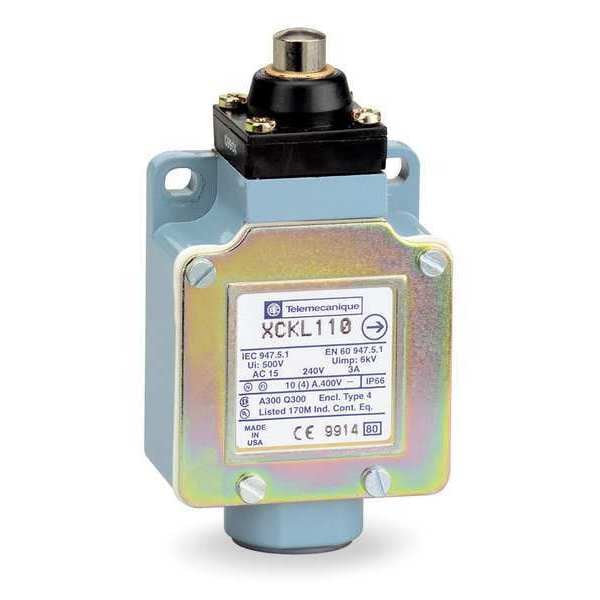

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKL110H7 - main

Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKL110H7

  • Zoro # G1397961

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKL110H7
Zoro #
G1397961
UPC #
785901451631
Country of Origin
France

Dimensions

Actuator Length
0.98"
Depth
1.18"
Actuator Length - Limit Switch
0.98 in
Body Width - Limit Switch
2.04 in
Body Height - Limit Switch
2.83 in
Height
2.83"
Width
2.04"
Body Depth - Limit Switch
1.18 in
Overall Width
2.05 in
Overall Depth
1.18 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
18 mo
Body Height
2.83 in
Body Width
2.05 in
Body Depth
1.18 in
Overall Height
2.83 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Series
XCKL
Travel
0.22 in
Body Material
Zamak
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating
3 A @ 240 V
Actuator Style
Plunger
Contact Form - Limit Switch
1NC/1NO
IP Rating
IP66
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Voltage Rating
240VAC/DC
Mounting Hole - Limit Switch
(2) 0.20 in dia
NEMA Rating
1, 12, 2, 3, 4
Wiring Entry
1/2 in NPT
Limit Switch Style
General Purpose Limit Switch
Stem Thread - Limit Switch
No Stem
Electrical Connection
Screw Clamp Terminals
DC Contact Rating
0.27 A @ 250 V
Operating Force
3.4 lb
Contact Form
1NO/1NC
Movement
Vertical
Body Style (Limit Switch)
Miniature
Actuator Style (Limit Switch)
Plunger
Actuator Location (Limit Switch)
Top
Amps
10
Boot Sealed Actuator - Limit Switch
No
Mounting Hole Spacing - Limit Switch
1.61 in
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location
Top
Special Features
vertical approach, 1 direction
Certification
CSA || UL
Actuation Type
on end
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Min. Actuation Velocity Horizontal
0.5 m/s
Short Circuit Protection
10 A cartridge fuse gG
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Head Type
plunger head
Mechanical Durability
20000000 cycles
Contact Action
snap action
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Type Of Operator
spring return plunger metal
Number Of Poles
2
Mounting Hole Horizontal Center to Center Distance
41 mm
Number of Mounting Holes
2
Operating Force - Maximum
15 N
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 2, 3, 4
Directional Movement
Linear
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.98 in, Body Height - Limit Switch 2.83 in, Body Width - Limit Switch 2.04 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 2, 3, 4, Mounting - Limit Switch Surface
