Shop TELEMECANIQUE SENSORS

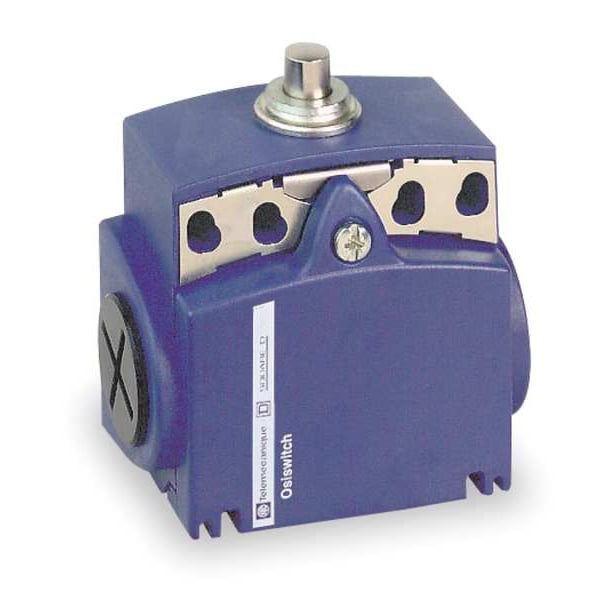

Limit switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKT2110N12

  • Zoro # G1816437

product price:
$
79.39
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKT2110N12
Zoro #
G1816437
UPC #
785901269588
Country of Origin
France

Dimensions

Actuator Length
0.39"
Actuator Length - Limit Switch
0.39 in
Body Height - Limit Switch
2.0 in
Body Depth - Limit Switch
1.18 in
Depth
1.18"
Body Width - Limit Switch
2.28 in
Width
2.28"
Height
2.00"
Body Width
2.28 in
Body Height
2 in
Mounting Hole Diameter
1.57 in
Body Depth
1.18 in
Manufacturer Warranty Length
18 mo
Overall Width
3.12 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Style
Plunger
AC Contact Rating
10 A @ 240 V
Contact Form - Limit Switch
1NC/1NO
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
1.57 in
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 12, 13, 2, 4, 6
Operating Force
1.9 in-lb
Boot Sealed Actuator (Limit Switch)
No
Amps
10
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location (Limit Switch)
Top
Arm Material
Metal
Travel
0.20 in
Contact Form
1NO/1NC
Limit Switch Style
General Purpose Limit Switch
Body Material
plastic
IP Rating
IP66, IP67
Series
XCKT
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Voltage Rating
240VAC/DC
Stem Thread - Limit Switch
No Stem
Movement
Vertical
Actuator Location
Top
DC Contact Rating
0.27 A @ 250 V
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Terminal
Head Material
zamak
Certification
CCC || UL || CSA
Special Features
vertical approach, 1 direction
Head Type
plunger head
Actuation Type
on end
Mechanical Durability
15000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Short Circuit Protection
10 A cartridge fuse gG
Contact Action
snap action
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mounting Hole Horizontal Center to Center Distance
40 mm
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Torque - Maximum
1.9 in-lb
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Force - Maximum
15 N
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.39 in, Body Height - Limit Switch 2 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, Mounting - Limit Switch Surface
