Shop TELEMECANIQUE SENSORS

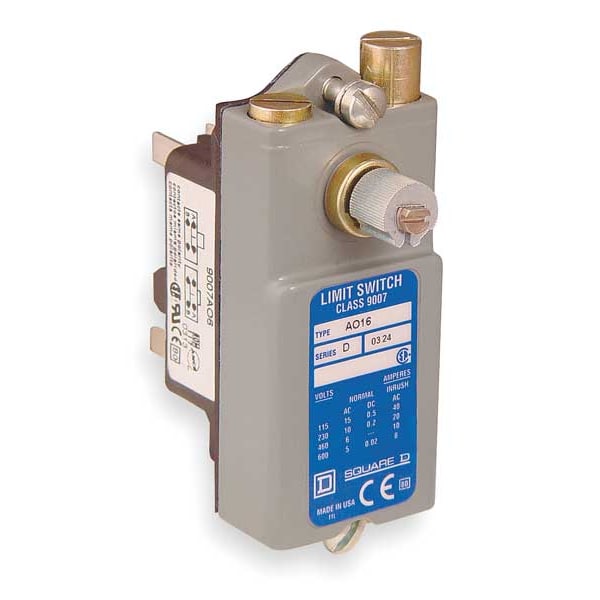

Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC

  • Mfr # 9007AO16

  • Zoro # G2043623

product price:  $257.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
open type
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007AO16
Zoro #
G2043623
UPC #
785901807605
Country of Origin
Mexico

Dimensions

Height
3.91"
Width
2.40"
Depth
1.40"
Body Depth - Limit Switch
1.38 in
Body Height - Limit Switch
3.47in
Manufacturer Warranty Length
18 mo
Overall Depth
1.38 in
Mounting Hole Diameter
0.2 in
Overall Width
2.38 in
Overall Height
3.47 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
open type
Series
9007AW
Operating Temp.
-20 Degrees to 185 Degrees F
Actuator Style
Rotary Head, No Lever
AC Contact Rating
10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V
Movement
CW, CCW
Contact Form
1NO/1NC
Travel
Total Travel 90 Degrees
NEMA Rating
1, 2, 4, 12, 13
Actuator Location
Side
For Use With
Type 9007 C Compact Limit Switches
Standards
CSA, UL Listed
DC Contact Rating
0.1 A @ 250 V, 0.25 A @ 125 V
Amps
15
Operating Force
2.75 in.-lb.
Electrical Connection
Screw Terminal
Voltage Rating
600VAC/DC
Wiring Entry
Open Style
IP Rating
IP20
Operating Temp. Range
-65 Degrees to 185 Degrees F
Special Features
lateral approach, 1 direction programmable
Body Material
Zinc
Body Style (Limit Switch)
plug-in
Contact Material
silver contacts
Weight
0.1 lb(US)
Head Type
rotary head
Actuation Type
from left convertible to right, CCW convertible to CW
Min. Actuation Velocity Horizontal
130 ft/min with 30 Degree cam angle, levers only, 90 ft/min with 45 Degree cam angle, levers only
Contact Action
snap action
Mounting Hole Horizontal Center to Center Distance
27 mm
Body Configuration
Plug-In
Operating Temperature - Minimum
0 Degrees F
Number of Mounting Holes
2
NEMA Enclosure Rating
1
Lamp Type
No Lamp Module Included
Mounting Hole Vertical Center to Center Distance
89 mm
Operating Temperature - Maximum
185 Degrees F
Number Of Poles
1
Type Of Operator
spring return without operating lever cast zinc

Description

Compact Limit Switch Body, Actuator Style - Limit Switch Rotary, No Lever, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 3.47 in, Body Width - Limit Switch 2.38 in, Body Depth - Limit Switch 1.38 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, Electrical Connection Screw Clamp Terminals, IP Rating IP20
