Shop TELEMECANIQUE SENSORS

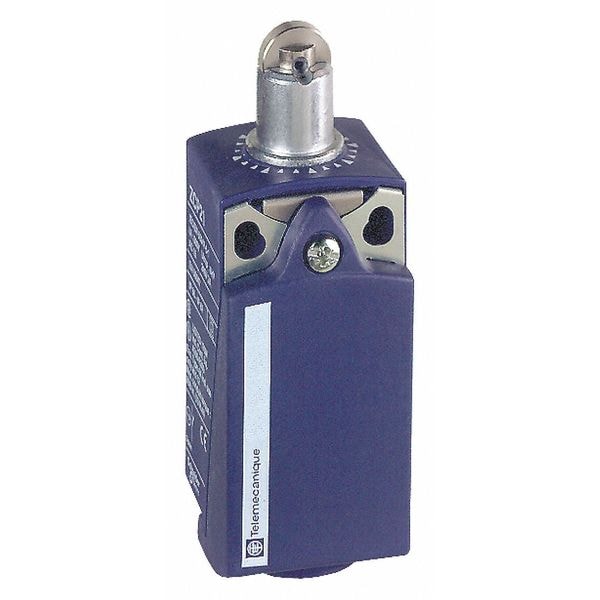

Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2102G11
  • Zoro # G0787087
product price:
$
77.89
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKP2102G11
Zoro #
G0787087
UPC #
785901300045
Country of Origin
Indonesia

Dimensions

Width
1.22"
Depth
1.18"
Body Height - Limit Switch
2.56 in
Body Width - Limit Switch
1.22 in
Actuator Length
0.8 in
Roller Width
0.14 in
Actuator Length - Limit Switch
0.8 in
Body Depth - Limit Switch
1.18 in
Roller Dia.
0.46 in
Height
2.56"
Overall Height
2.56 in
Roller Diameter
0.46 in
Body Depth
1.18 in
Overall Width
1.22 in
Body Height
2.56 in
Body Width
1.22 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Mounting Hole Diameter
0.17 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Location
Top
Voltage Rating
240VAC/DC
DC Contact Rating
0.27 A @ 250 V
Actuator Style (Limit Switch)
Plunger, Roller
Mounting Hole - Limit Switch
(2) 0.17 in dia
Amps
10
AC Contact Rating
10 A @ 240 V
Series
XCKP
Movement
Horizontal
Arm Material
Metal
Stem Thread - Limit Switch
No Stem
Body Material
plastic
Contact Form
1NO/1NC
Actuator Style
Roller Plunger
Body Style (Limit Switch)
Miniature
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Roller Material
Steel
Electrical Connection
Screw Terminal
NEMA Rating
1, 12, 13, 2, 4, 6
Boot Sealed Actuator (Limit Switch)
No
Standards
CE, CSA, UL Listed
Basic Actuator Style (Limit Switch)
Plunger
Travel
0.31 in
Wiring Entry
G11 Metric
Contact Form - Limit Switch
1NC/1NO
Actuator Location (Limit Switch)
Top
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Operating Force
1.6 in-lb
Boot Sealed Actuator - Limit Switch
No
Mounting Hole Spacing - Limit Switch
0.75 in
Head Material
zamak
Special Features
lateral approach, 2 directions
Certification
UL || CCC || CSA
Head Type
plunger head
Short Circuit Protection
10 A cartridge fuse gG
Min. Actuation Velocity Horizontal
0.5 m/s
Actuation Type
by 30° cam
Contact Action
snap action
Mechanical Durability
10000000 cycles
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Weight
0.095 kg
Number Of Poles
2
Type Of Operator
spring return roller plunger metal
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
19 mm
Mounting Style
Surface
Operating Torque - Maximum
1.6 in-lb
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
2
Operating Force - Maximum
12 N
Directional Movement
Linear
Operating Temperature - Minimum
-13 Degrees F
Boot Sealed Actuator
No Boot Included

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
