  15. Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

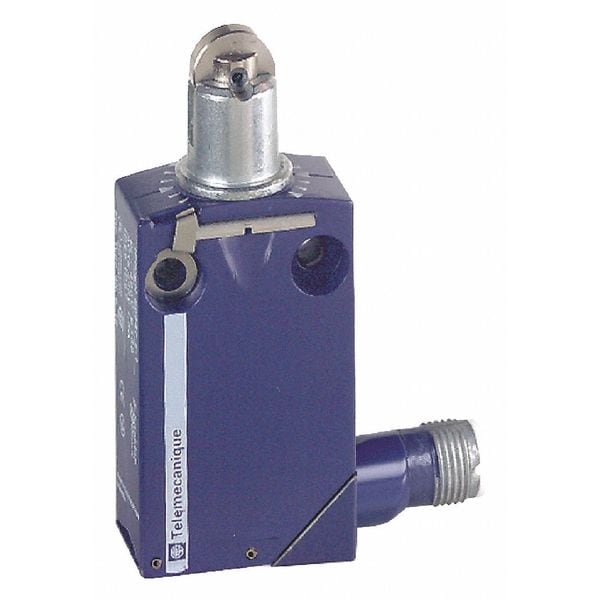

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top XCMD2102M12 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

  • Mfr # XCMD2102M12

  • Zoro # G1441702

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCMD2102M12
Zoro #
G1441702
UPC #
785901858980
Country of Origin
Indonesia

Dimensions

Depth
0.63"
Body Width - Limit Switch
1.18 in
Actuator Length - Limit Switch
0.8 in
Roller Dia.
0.46 in
Body Height - Limit Switch
1.97 in
Actuator Length
0.80"
Body Depth - Limit Switch
0.63 in
Width
1.18"
Height
1.97"
Roller Width
0.14 in
Roller Diameter
0.46 in
Body Depth
0.63 in
Body Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Depth
0.63 in
Body Height
1.97 in
Overall Width
1.18 in
Overall Height
1.97 in
Mounting Hole Diameter
0.17 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
DC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Contact Form - Limit Switch
1NC/1NO
Stem Thread - Limit Switch
No Stem
Actuator Location
Top
Basic Actuator Style (Limit Switch)
Plunger
Arm Material
Metal
Boot Sealed Actuator - Limit Switch
No
Limit Switch Style
General Purpose Limit Switch
Body Material
Zinc
Body Style (Limit Switch)
Miniature
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
IP Rating
68
DC Contact Rating
3A at 240V
Roller Material
Steel
AC Contact Rating
3A at 240V
Voltage Rating
240VAC/DC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
M12 4-Pin Connector
Actuator Style (Limit Switch)
Plunger, Roller
Movement
Horizontal
Mounting Hole Spacing - Limit Switch
0.79 in
Actuator Location (Limit Switch)
Top
Series
XCMD
Contact Form
1NC/1NO
Standards
CE, CSA, UL
Operating Force
1.6 in-lb
Actuator Style
Top Roller Plunger, Compact Body
Amps
3
Travel
0.31 in
Mounting Hole - Limit Switch
(2) 0.16 in dia
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Boot Sealed Actuator (Limit Switch)
No
Wiring Entry
Connector
Certification
UL || CCC || CSA
Special Features
lateral approach, 2 directions
Head Material
zamak
Weight
0.09 kg
Electrical Durability
5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
plunger head
Contact Action
snap action
Actuation Type
by 30° cam
Min. Actuation Velocity Horizontal
0.5 m/s
Mechanical Durability
10000000 cycles
Short Circuit Protection
4 A cartridge fuse gG
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Mounting Hole Horizontal Center to Center Distance
20 mm
Body Configuration
Plug-In
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Force - Maximum
7 N
Mounting Style
Surface
Directional Movement
Linear
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
1.6 in-lb
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Operating Temperature - Maximum
158 Degrees F

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 3A @ 240V, DC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
