  15. Limit Switch, Plunger, Roller, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

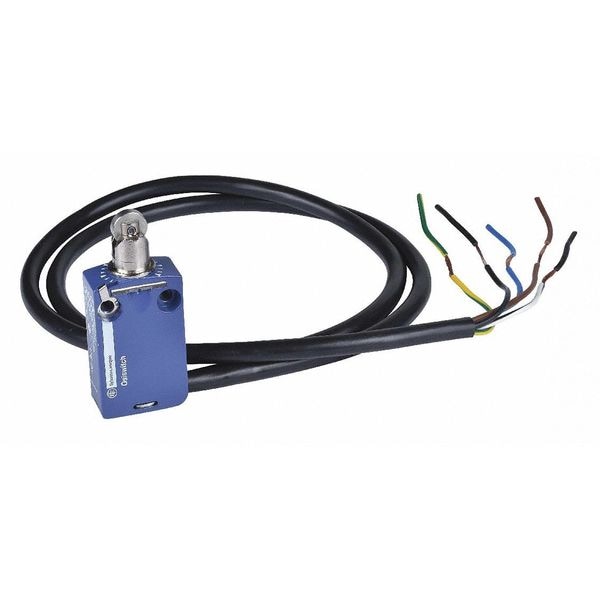

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 6A at 240V AC, Actuator Location: Top XCMD2102L2 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

  • Mfr # XCMD2102L2

  • Zoro # G6512152

product price: $83.79
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCMD2102L2
Zoro #
G6512152
UPC #
785901468189
Country of Origin
Indonesia

Dimensions

Height
1.97"
Body Height - Limit Switch
1.97 in
Actuator Length
0.80"
Body Width - Limit Switch
1.18 in
Width
1.18"
Body Depth - Limit Switch
0.63 in
Actuator Length - Limit Switch
0.8 in
Roller Dia.
0.46 in
Depth
0.63"
Roller Width
0.14 in
Cable Length
2 m
Roller Diameter
0.46 in
Overall Depth
0.63 in
Manufacturer Warranty Length
18 mo
Body Width
1.18 in
Overall Width
1.18 in
Mounting Hole Diameter
0.16 in
Overall Height
1.97 in
Body Height
1.97 in
Body Depth
0.63 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
DC Contact Rating
6A at 240V
Electrical Connection
2m Cable, 5 Wire
Wiring Entry
Plug-In Cable
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
IP Rating
68
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
240VAC/DC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Movement
Horizontal
Roller Material
Steel
Arm Material
Metal
Operating Force
1.6 in-lb
Series
XCMD
Limit Switch Style
General Purpose Limit Switch
Amps
6
Standards
CE, CSA, UL
Basic Actuator Style (Limit Switch)
Plunger
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Actuator Style (Limit Switch)
Plunger, Roller
Mounting Hole Spacing - Limit Switch
0.79 in
Mounting Hole - Limit Switch
(2) 0.16 in dia
Body Material
Zinc
Actuator Location (Limit Switch)
Top
Travel
0.31 in
Contact Form - Limit Switch
1NC/1NO
Actuator Style
Plunger, Roller
Contact Form
1NC/1NO
AC Contact Rating
6A at 240V
Actuator Location
Top
Body Style (Limit Switch)
Miniature
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Head Material
zamak
Certification
CCC || UL || CSA
Special Features
lateral approach, 2 directions
Contact Action
snap action
Mechanical Durability
10000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
plunger head
Weight
0.185 kg
Short Circuit Protection
6 A cartridge fuse gG
Actuation Type
by 30° cam
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Type Of Operator
spring return roller plunger metal
Number Of Poles
2
Directional Movement
Linear
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Minimum
-13 Degrees F
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
20 mm
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Torque - Maximum
1.6 in-lb
Operating Force - Maximum
7 N
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
Boot Sealed Actuator
No Boot Included

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
