  8. Limit Switch, Plunger, Roller, 1NC/1NO, Actuator Location: Top

This item is Discontinued.

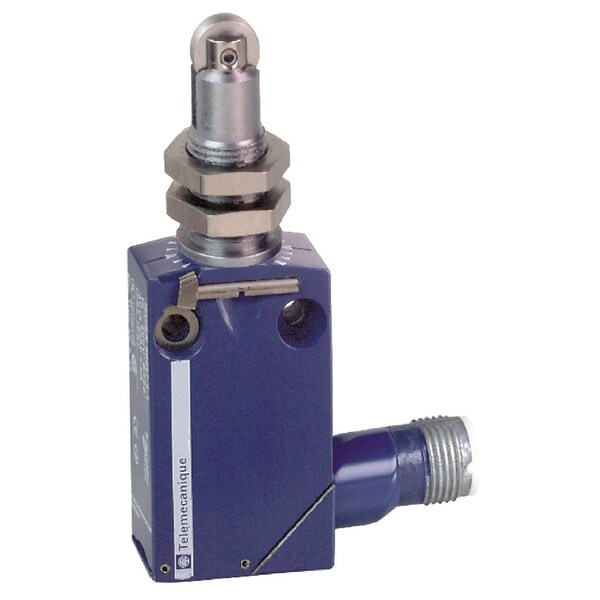

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, Actuator Location: Top XCMD21F2C12

Limit Switch, Plunger, Roller, 1NC/1NO, Actuator Location: Top (Discontinued)

  • Mfr # XCMD21F2C12
  • Zoro # G3972148
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCMD21F2C12
Zoro #
G3972148
UPC #
-
Country of Origin
Indonesia

Dimensions

Body Height - Limit Switch
50mm
Width
30 mm
Body Depth - Limit Switch
16 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
Operating Temp. Range
-25-70 °C
IP Rating
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529
Movement
linear
Certification
CSA || UL || CCC
Body Material
zamak
Standards
UL 508 || EN/IEC 60204-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14
Electrical Connection
male connector M12, 5 pins
Body Style (Limit Switch)
plug-in body
Series
XCMD
Head Material
zamak
Operating Force
7 N
Special Features
lateral approach, 2 directions
Contact Action
snap action
Min. Actuation Velocity Horizontal
10 cm/s
Actuation Type
by 30° cam
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Electrical Durability
5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
M12 plunger head
Mechanical Durability
10000000 cycles
Short Circuit Protection
4 A cartridge fuse gG
Weight
0.11 kg
Number Of Poles
2
Type Of Operator
spring return roller plunger metal

Description

Limit switch XCMD - M12 steel roller plu
