  8. Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

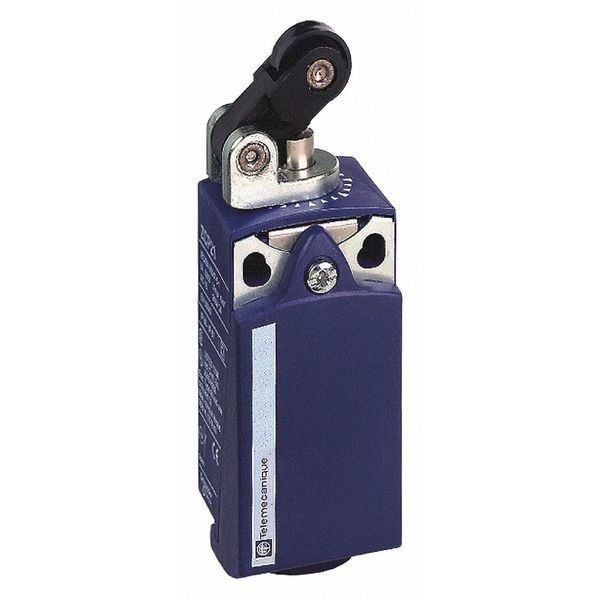

Telemecanique Sensors Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKP2121N12 - main

Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2121N12

  • Zoro # G1171886

product price:  $96.55
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2121N12
Zoro #
G1171886
UPC #
785901269533
Country of Origin
France

Dimensions

Body Width - Limit Switch
1.22 in
Body Height - Limit Switch
2.56 in
Roller Dia.
0.55 in
Actuator Length - Limit Switch
0.8 in
Width
1.22"
Body Depth - Limit Switch
1.18 in
Actuator Length
0.8 in
Depth
1.18"
Roller Width
0.22 in
Height
2.56"
Body Height
2.56 in
Overall Width
1.21 in
Mounting Hole Diameter
0.17 in
Roller Diameter
0.55 in
Body Width
1.21 in
Overall Depth
1.26 in
Manufacturer Warranty Length
18 mo
Overall Height
3.12 in
Body Depth
1.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
Screw Clamp Terminals
IP Rating
IP66, IP67
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
Amps
10
Limit Switch Style
General Purpose Limit Switch
Actuator Style (Limit Switch)
Plunger, Roller Lever
DC Contact Rating
0.27 A @ 250 V
Actuator Location (Limit Switch)
Top
Operating Force
1.3 in-lb
Operating Temp. Range
-13 Degrees to 158 Degrees F
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
1NC/1NO
NEMA Rating
1, 12, 13, 2, 4, 6
Body Style (Limit Switch)
Miniature
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Voltage Rating
240VAC/DC
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location
Top
Series
XCKP
Mounting Hole Spacing - Limit Switch
0.75 in
Wiring Entry
1/2 in NPT
Actuator Style
Roller Plunger
AC Contact Rating
10 A @ 240 V
Arm Material
Plastic
Body Material
plastic
Movement
Horizontal, One Way
Travel
0.63 in
Roller Material
Thermoplastic
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Basic Actuator Style (Limit Switch)
Plunger
Contact Form
1NO/1NC
Certification
CCC || UL || CSA
Head Material
zamak
Special Features
lateral approach, 1 direction
Min. Actuation Velocity Horizontal
1 m/s
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Head Type
plunger head
Mechanical Durability
15000000 cycles
Contact Action
snap action
Short Circuit Protection
10 A cartridge fuse gG
Actuation Type
by 30° cam
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Operating Force - Maximum
6 N
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Directional Movement
Linear
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
19 mm
Operating Torque - Maximum
1.3 in-lb
Boot Sealed Actuator
No Boot Included
Type Of Operator
spring return roller lever plunger thermoplastic
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
