  15. Limit Switch, Plunger, Roller, SPDT, 3A at 240V AC, Actuator Location: Top

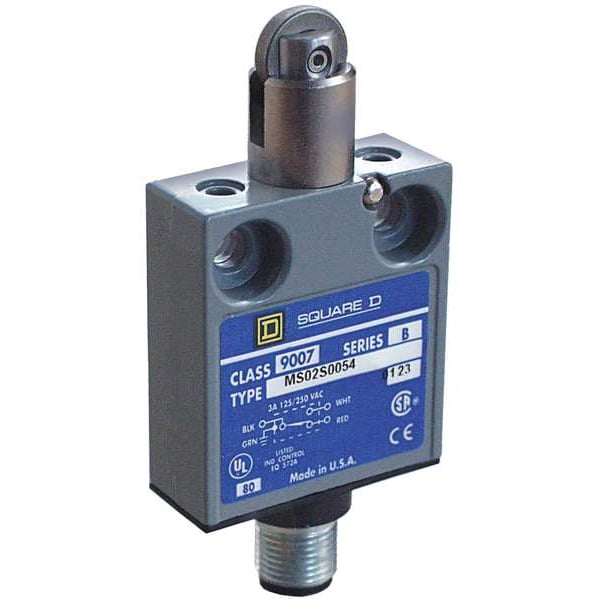

Telemecanique Sensors Limit Switch, Plunger, Roller, SPDT, 3A at 240V AC, Actuator Location: Top 9007MS02S0054 - main

Limit Switch, Plunger, Roller, SPDT, 3A at 240V AC, Actuator Location: Top

  • Mfr # 9007MS02S0054

  • Zoro # G2451802

product price: $182.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007MS02S0054
Zoro #
G2451802
UPC #
785901323532
Country of Origin
Mexico

Dimensions

Actuator Length
0.88"
Actuator Length - Limit Switch
0.88 in
Roller Width
0.13 in
Width
1.56"
Height
2.63"
Body Depth - Limit Switch
0.62 in
Roller Dia.
0.5 in
Depth
0.62"
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
1.58 in
Overall Depth
0.62 in
Overall Width
1.56 in
Body Height
1.75 in
Mounting Hole Diameter
0.2 in
Body Width
1.58 in
Overall Height
1.75 in
Roller Diameter
0.5 in
Body Depth
0.62 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
DC Contact Rating - Limit Switch
3A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
240VAC/28VDC
Contact Form
SPDT
Boot Sealed Actuator - Limit Switch
No
Mounting Hole Spacing - Limit Switch
0.98 in
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Electrical Connection
M12 4-Pin Connector
Roller Material
Steel
Travel
0.19 in
Body Material
Zinc
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Style (Limit Switch)
Miniature
Operating Force
5.0 in-lb
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location
Top
Wiring Entry
Connector
Operating Temp. Range
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
DC Contact Rating
3A at 28V
Amps
3 DC
Series
9007MS
Number of Poles
1
Limit Switch Style
General Purpose Limit Switch
AC Contact Rating
3A at 240V
Actuator Location (Limit Switch)
Top
Actuator Style (Limit Switch)
Plunger, Roller
Basic Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
Movement
Horizontal
Actuator Style
Parallel Roller Plunger
Standards
CE, CSA, UL
Stem Thread - Limit Switch
No Stem
IP Rating
67
Contact Form - Limit Switch
SPDT
Special Features
lateral approach, 2 directions
Contact Material
silver contacts
Certification
UL || CE || CSA
Head Type
plunger head
Actuation Type
by 30° cam
Contact Action
snap action
Vibration Resistance
10 gn 75-1200 Hz)IEC 60068-2-6
Weight
1.2 lb(US)
Shock Resistance
35 gn 9 ms IEC 60068-2-27
Electrical Durability
100000 cycles
Mechanical Durability
10000000 cycles
Operating Temperature - Maximum
220 Degrees F
Mounting Style
Surface
Number of Mounting Holes
2
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
Mounting Hole Horizontal Center to Center Distance
25 mm
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Force - Maximum
80 ozf
Type Of Operator
spring return parallel roller plunger steel

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 3A @ 240V, DC Contact Rating - Limit Switch 3A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.88 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
