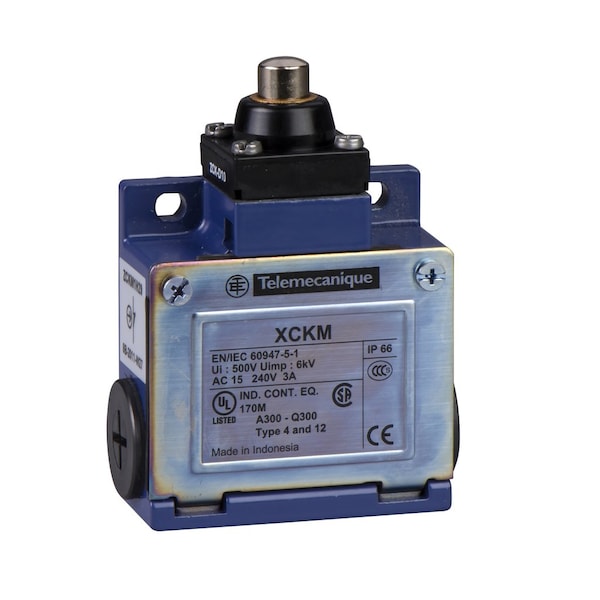

Limit Switch, Plunger, Spring Return, 1NC/1NO, Actuator Location: Top

  • Mfr # XCKM110H29
  • Zoro # G3983381
product price:
$
81.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
Operating Temp. Range
-25 Degrees to 70 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKM110H29
Zoro #
G3983381
UPC #
-
Country of Origin
France

Dimensions

Width
64 mm
Body Height - Limit Switch
64mm
Body Depth - Limit Switch
30 mm
Overall Depth
1.18 in
Overall Height
2.52 in
Body Depth
1.18 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
5.2 mm
Overall Width
2.52 in
Body Width
2.52 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
Operating Temp. Range
-25 Degrees to 70 Degrees C
Movement
linear
Electrical Connection
Screw Terminal
Series
XC
Body Style (Limit Switch)
fixed
Certification
UL || CSA || CCC
Body Material
Zamak
IP Rating
IP66
Operating Force
15 N
Special Features
vertical approach, 1 direction
Standards
CCC, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60529, IEC 60947-5-1, RoHS, UL 508
Short Circuit Protection
10 A cartridge fuse gG
Actuation Type
on end
Head Type
plunger head
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
20000000 cycles
Contact Action
Snap-Action
Weight
0.25 kg
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Min. Actuation Velocity Horizontal
0.5 m/s
Type Of Operator
spring return plunger metal
Number Of Poles
2
Arm Material
Metal
Directional Movement
Linear
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
AC Contact Rating
0.27 A @ 250 V, 3 A @ 240 V
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Plunger Adjustability
Fixed
Mounting Style
Surface
Number of Mounting Holes
2
Contact Form
1NO/1NC
Body Configuration
Non Plug-In
Lamp Type
No Lamp Module Included
Includes Actuator
Actuator Included
Operating Force - Minimum
15 N
Action
Momentary
DC Contact Rating
0.27 A @ 250 V

Description

Limit switch XCKM - metal end plunger -
